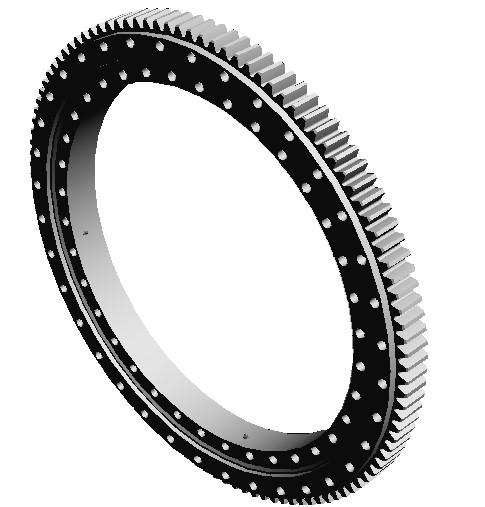

Model : CD-E.1144.32.15.D.1
Specification Imperial Metric
SPINEA Part Number CD-E.1144.32.15.D.1
Reference Kaydon Part Number N/A
Reference Torriani Part Number E.1144.32.15.D.1
Type Standard
Teeth External

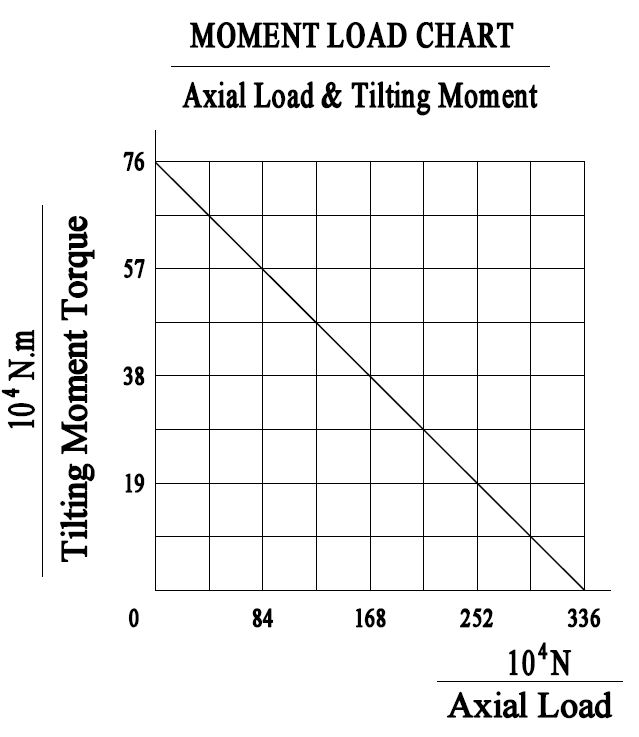

Max Moment Rating 560880.0 ft-lbs 760000 Nm
Approx. Weight 507 lbs 230 kg
Outer Diameter 45.039 in 1144 mm
Inner Diameter 34.252 in 870 mm
Outer Bolt Circle Diameter 41.339 in 1050 mm
Qty of Holes in Outer Ring 36
Outer Hole Size 0.866 in 22 mm
Inner Bolt Circle Diameter 35.827 in 910 mm
Qty of Holes in Inner Ring 36
Inner Hole Size 0.866 in 22 mm


Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
