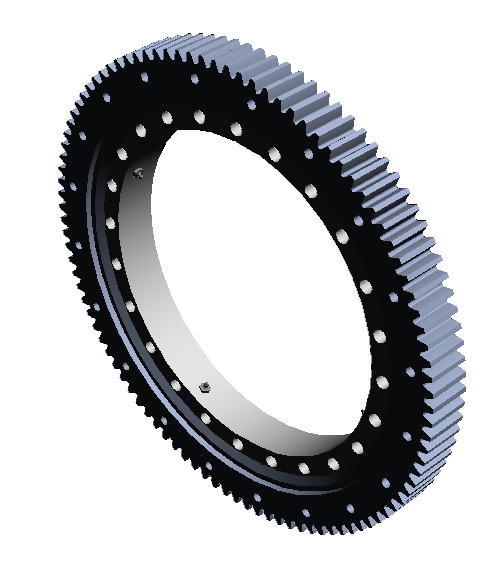

Model : CD-E.505.20.00.B
Specification Imperial Metric
SPINEA Part Number CD-E.505.20.00.B
Reference Kaydon Part Number N/A
Reference Torriani Part Number E.505.20.00.B
Type Standard
Teeth External

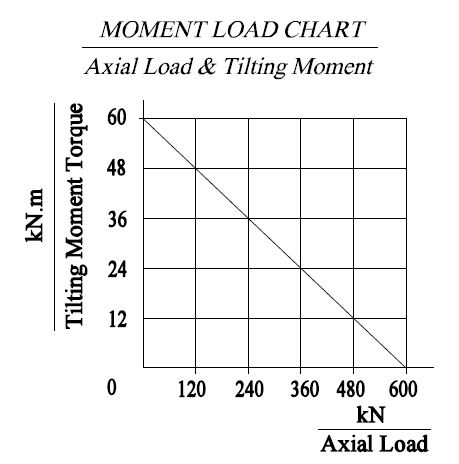

Max Moment Rating 44280.0 ft-lbs 60000 Nm
Approx. Weight 68 lbs 31 kg
Outer Diameter 19.882 in 505 mm
Inner Diameter 13.465 in 342 mm
Outer Bolt Circle Diameter 17.913 in 455 mm
Qty of Holes in Outer Ring 20
Outer Hole Size N/A M12
Inner Bolt Circle Diameter 14.488 in 368 mm
Qty of Holes in Inner Ring 24
Inner Hole Size 0.551 in 14 mm


Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
