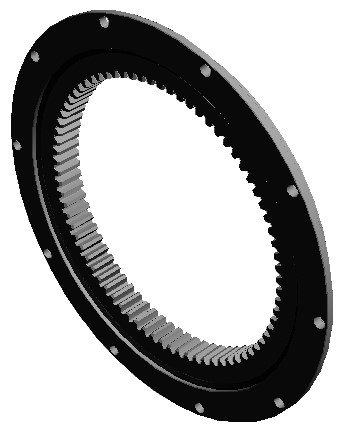

Model : CD-I.650.20.00.C
Specification Imperial Metric
SPINEA Part Number CD-I.650.20.00.C
Reference Kaydon Part Number N/A
Reference Torriani Part Number I.650.20.00.C
Type Flanged
Teeth Internal

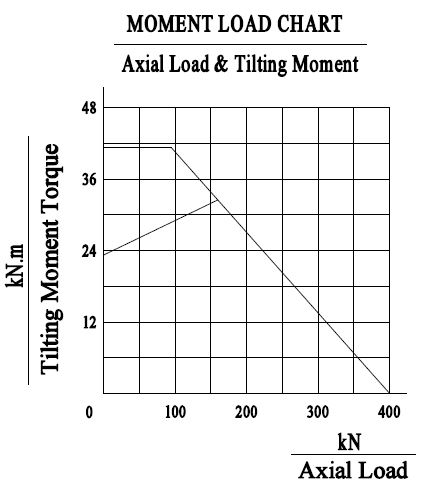

Max Moment Rating 30258.0 ft-lbs 41000 Nm
Approx. Weight 83 lbs 37.5 kg
Outer Diameter 25.591 in 650 mm
Inner Diameter 17.528 in 445.2 mm
Outer Bolt Circle Diameter 24.409 in 620 mm
Qty of Holes in Outer Ring 10
Outer Hole Size 0.709 in 18 mm
Inner Bolt Circle Diameter 19.882 in 505 mm
Qty of Holes in Inner Ring 16
Inner Hole Size N/A M12
