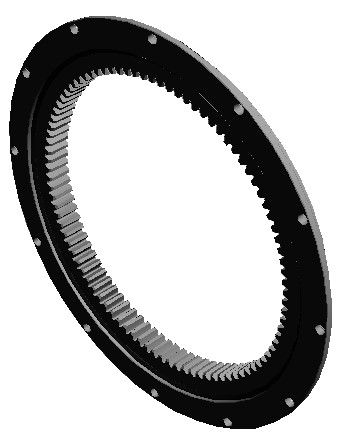

Model : CD-I.750.20.00.C
Specification Imperial Metric
SPINEA Part Number CD-I.750.20.00.C
Reference Kaydon Part Number N/A
Reference Torriani Part Number I.750.20.00.C
Type Flanged
Teeth Internal

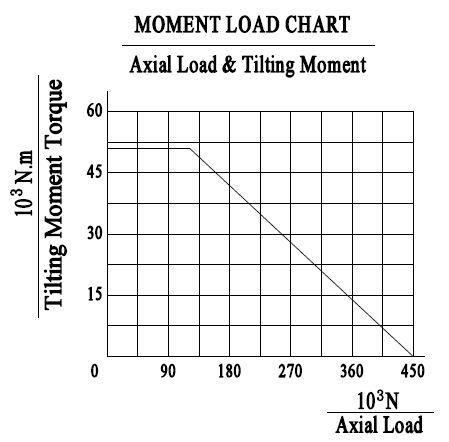

Max Moment Rating 36900.0 ft-lbs 50000 Nm
Approx. Weight 98 lbs 44.5 kg
Outer Diameter 29.528 in 750 mm
Inner Diameter 21.543 in 547.2 mm
Outer Bolt Circle Diameter 28.346 in 720 mm
Qty of Holes in Outer Ring 12
Outer Hole Size 0.709 in 18 mm
Inner Bolt Circle Diameter 23.819 in 605 mm
Qty of Holes in Inner Ring 18
Inner Hole Size N/A M12
