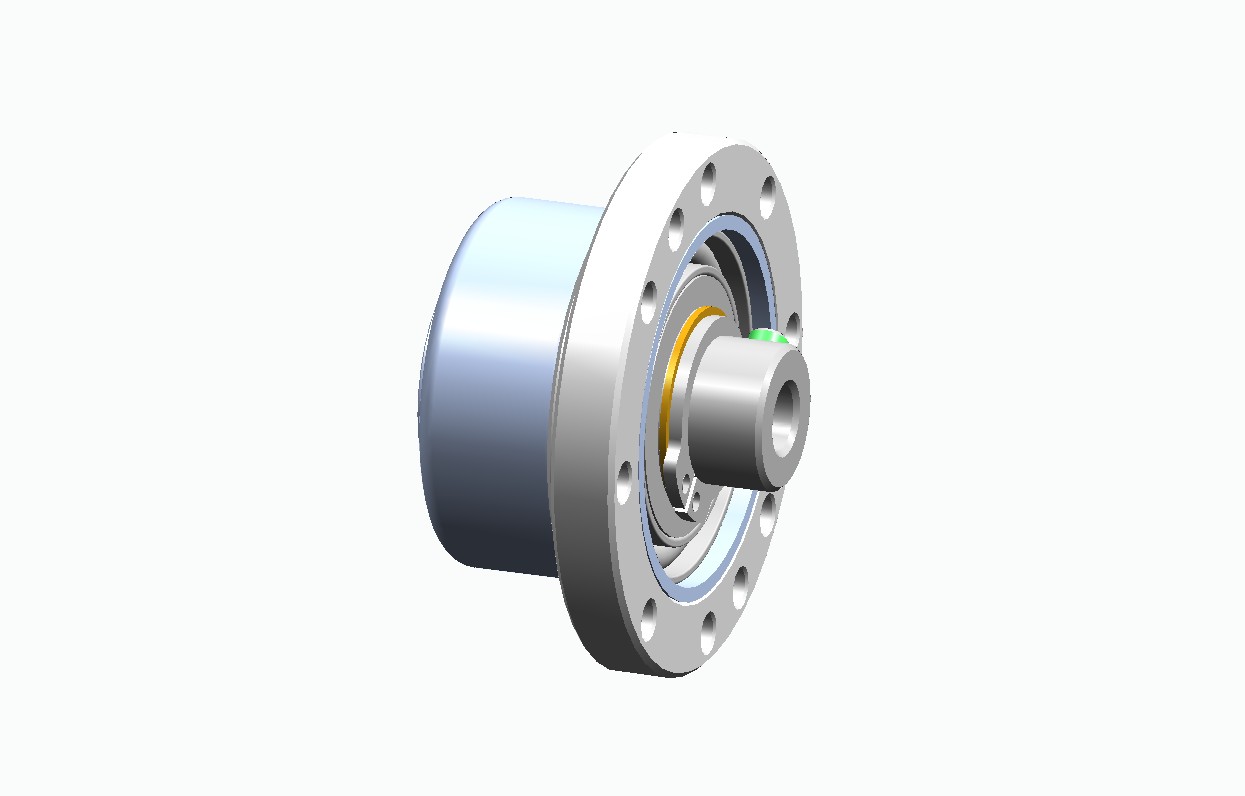

Model :CBC110050--

Series Size Ratio
CBC 11 050

Specifications
Model Number CBC110050--
Configuration Cup Big Component Set
Size 11
Ratio 50
Continuous Torque 3.4 Nm 30 lb-in
Start - Stop Torque 7.8 Nm 69 lb-in
Max Average Torque 5.1 Nm 45 lb-in
Peak Torque 16.6 Nm 147 lb-in
Efficiency 72 %
No Load Input Torque 0.024 Nm 0.21 lb-in
Starting Torque 0.016 Nm 0.14 lb-in
Backdrive Starting Torque 1 Nm 8.9 lb-in
Mass 0.059 Kg 0.13 lb
Drivetrain Inertia at input 1.2 10-6 kg-m2 10.6 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 0.8 Nm 7.1 lb-in
T2 2 Nm 17.7 lb-in
K1 2.2 Nm/mRad 19.5 lb-in
K2 3 Nm/mRad 26.6 lb-in
K3 3.2 Nm/mRad 28.3 lb-in
Max Backlash 0.14 mRad
Hysteresis 0.58 mRad
