Model :CBC200080--

Series Size Ratio
CBC 20 080

Specifications
Model Number CBC200080--

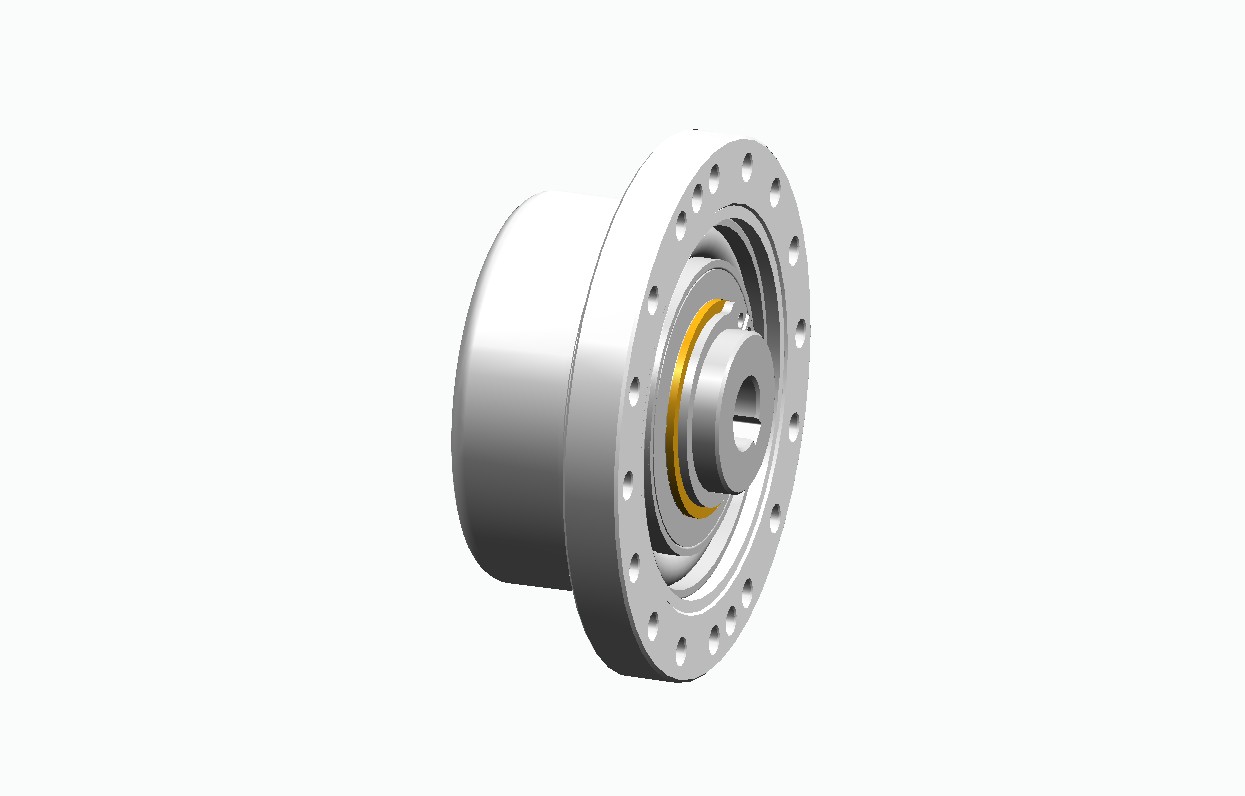

Configuration Cup Big Component Set
Size 20
Ratio 80
Continuous Torque 42 Nm 372 lb-in
Start - Stop Torque 94 Nm 832 lb-in
Max Average Torque 61 Nm 540 lb-in
Peak Torque 156 Nm 1381 lb-in
Efficiency 75 %
No Load Input Torque 0.1 Nm 0.89 lb-in
Starting Torque 0.045 Nm 0.4 lb-in
Backdrive Starting Torque 4.6 Nm 41 lb-in
Mass 0.21 Kg 0.46 lb
Drivetrain Inertia at input 23 10-6 kg-m2 204 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 7 Nm 62 lb-in
T2 25 Nm 221 lb-in
K1 16 Nm/mRad 142 lb-in
K2 25 Nm/mRad 221 lb-in
K3 29 Nm/mRad 257 lb-in
Max Backlash 0.053 mRad
Hysteresis 0.29 mRad

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
