Model :CBC250100--

Series Size Ratio
CBC 25 100

Specifications
Model Number CBC250100--
Configuration Cup Big Component Set
Size 25
Ratio 100
Continuous Torque 82 Nm 726 lb-in
Start - Stop Torque 185 Nm 1637 lb-in
Max Average Torque 137 Nm 1213 lb-in
Peak Torque 346 Nm 3062 lb-in
Efficiency 71 %
No Load Input Torque 0.2 Nm 1.8 lb-in
Starting Torque 0.076 Nm 0.67 lb-in
Backdrive Starting Torque 9.2 Nm 81 lb-in
Mass 0.45 Kg 0.99 lb
Drivetrain Inertia at input 58 10-6 kg-m2 513 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 14 Nm 124 lb-in
T2 48 Nm 425 lb-in
K1 31 Nm/mRad 274 lb-in
K2 50 Nm/mRad 443 lb-in
K3 57 Nm/mRad 504 lb-in
Max Backlash 0.044 mRad
Hysteresis 0.29 mRad

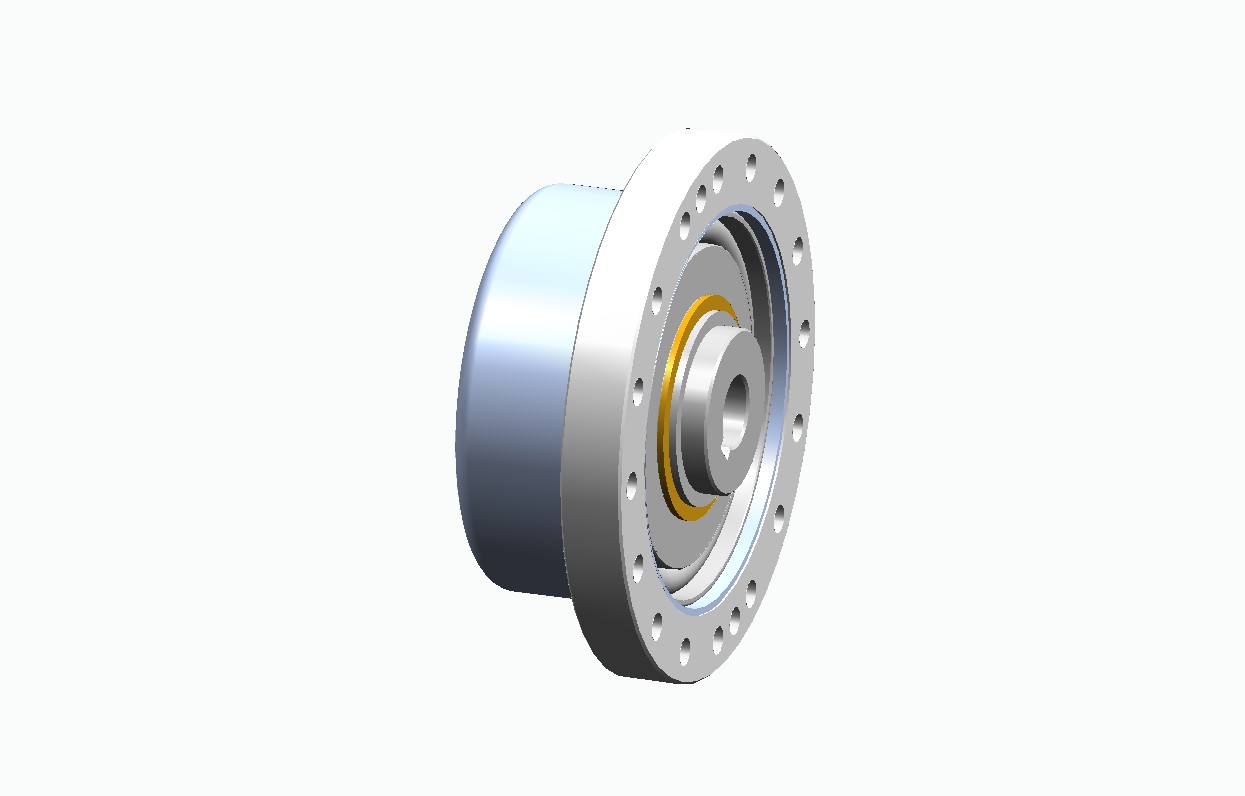

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
