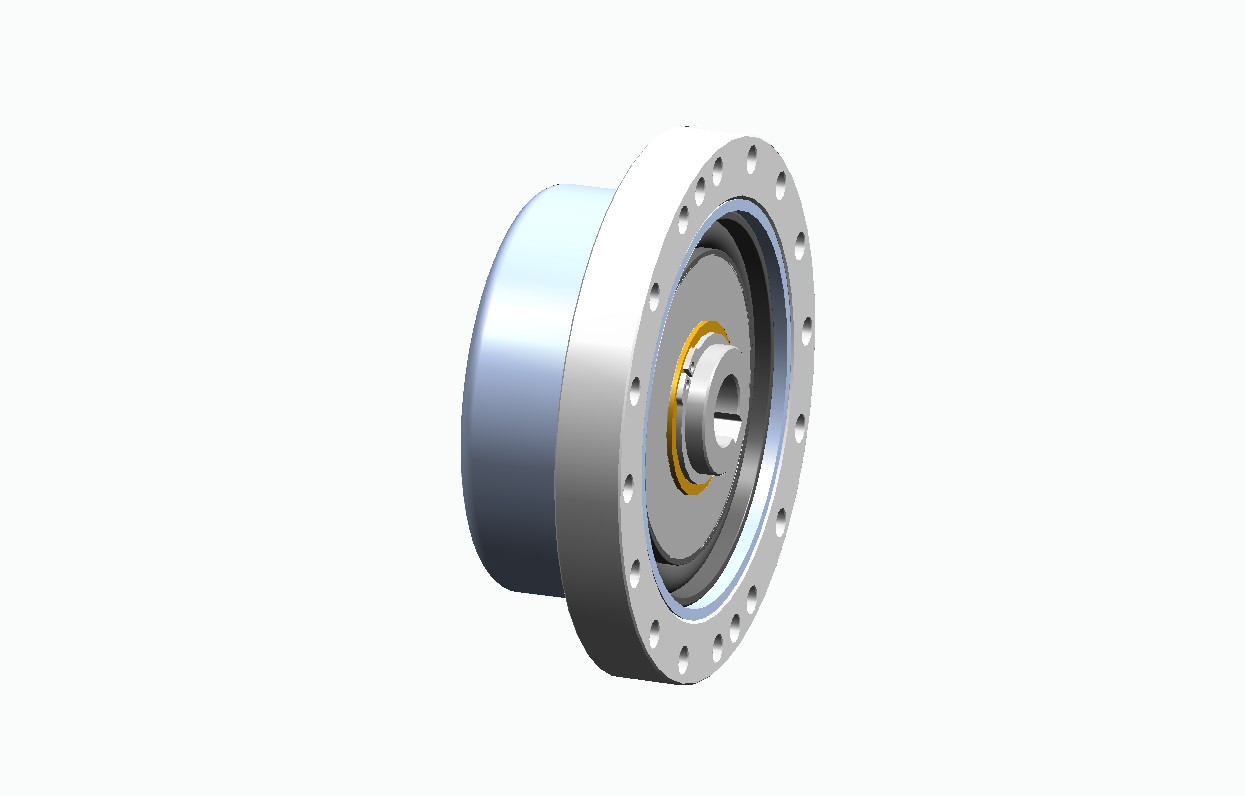

Model :CBC320080--

Series Size Ratio
CBC 32 080

Specifications
Model Number CBC320080--
Configuration Cup Big Component Set
Size 32
Ratio 80
Continuous Torque 153 Nm 1354 lb-in
Start - Stop Torque 341 Nm 3018 lb-in
Max Average Torque 212 Nm 1876 lb-in
Peak Torque 726 Nm 6426 lb-in
Efficiency 75 %
No Load Input Torque 0.41 Nm 3.6 lb-in
Starting Torque 0.18 Nm 1.6 lb-in
Backdrive Starting Torque 18 Nm 159 lb-in
Mass 0.95 Kg 2.1 lb
Drivetrain Inertia at input 176 10-6 kg-m2 1558 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 29 Nm 257 lb-in
T2 108 Nm 956 lb-in
K1 67 Nm/mRad 593 lb-in
K2 110 Nm/mRad 974 lb-in
K3 120 Nm/mRad 1062 lb-in
Max Backlash 0.044 mRad
Hysteresis 0.29 mRad
