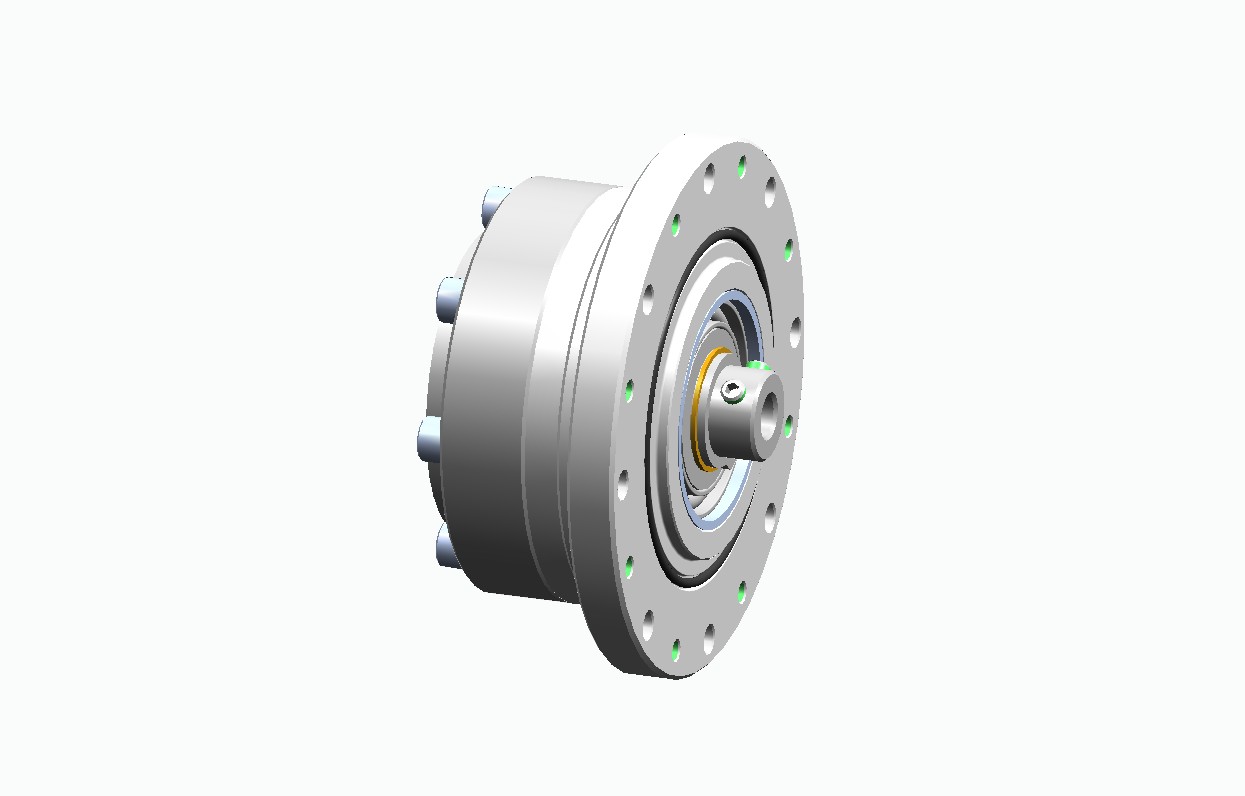

Model :CBG111100--

Series Size Ratio
CBG 11 100

Specifications
Model Number CBG111100--
Configuration Cup Big Gearhead
Size 11
Ratio 100
Continuous Torque 4.8 Nm 42 lb-in
Start - Stop Torque 10.6 Nm 94 lb-in
Max Average Torque 8.4 Nm 74 lb-in
Peak Torque 25.5 Nm 226 lb-in
Efficiency 64 %
No Load Input Torque 0.024 Nm 0.21 lb-in
Starting Torque 0.013 Nm 0.12 lb-in
Backdrive Starting Torque 1.5 Nm 13.3 lb-in
Mass 0.4 Kg 0.88 lb
Drivetrain Inertia at input 1.2 10-6 kg-m2 10.6 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 0.8 Nm 7.1 lb-in
T2 2 Nm 17.7 lb-in
K1 2.7 Nm/mRad 23.9 lb-in
K2 3.4 Nm/mRad 30 lb-in
K3 4.4 Nm/mRad 39 lb-in
Max Backlash 0.073 mRad
Hysteresis 0.58 mRad
