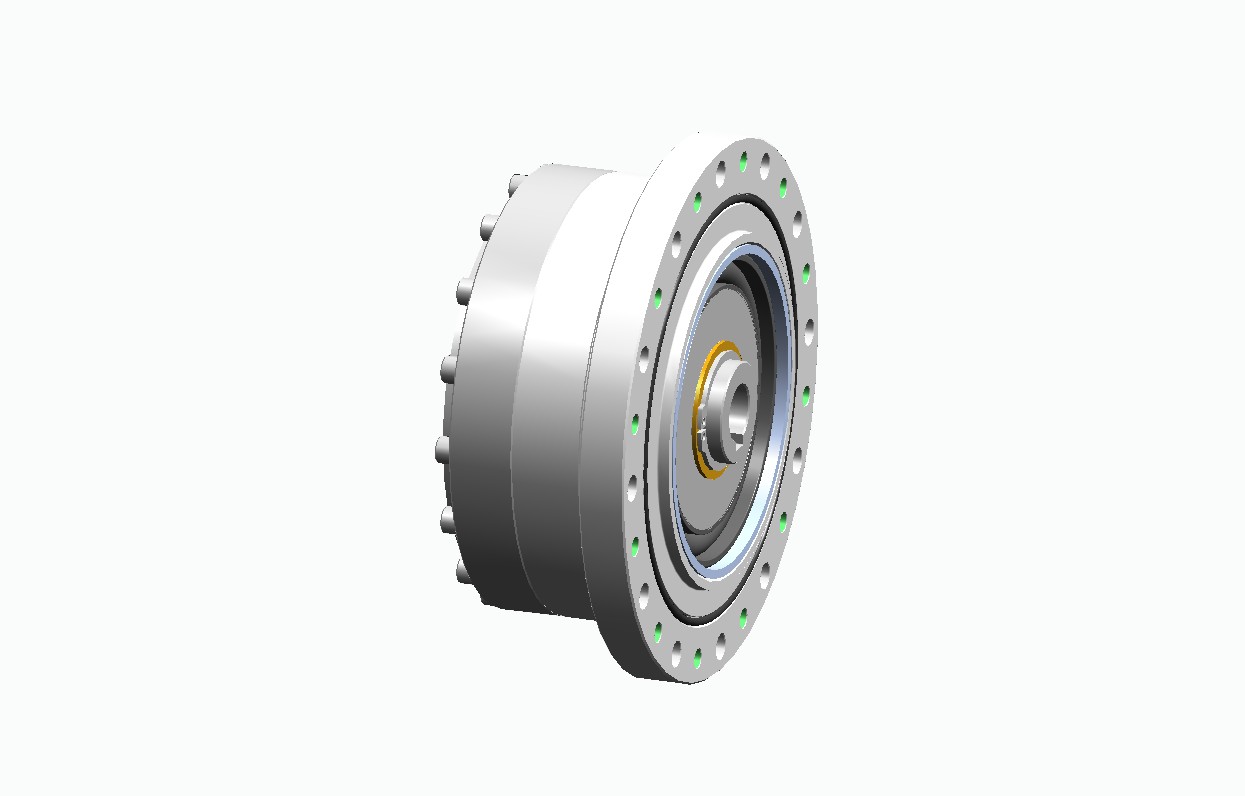

Model :CBG321080--

Series Size Ratio
CBG 32 080

Specifications
Model Number CBG321080--
Configuration Cup Big Gearhead
Size 32
Ratio 80
Continuous Torque 153 Nm 1354 lb-in
Start - Stop Torque 341 Nm 3018 lb-in
Max Average Torque 212 Nm 1876 lb-in
Peak Torque 726 Nm 6426 lb-in
Efficiency 72 %
No Load Input Torque 0.46 Nm 4.1 lb-in
Starting Torque 0.21 Nm 1.9 lb-in
Backdrive Starting Torque 21 Nm 186 lb-in
Mass 3.3 Kg 7.3 lb
Drivetrain Inertia at input 176 10-6 kg-m2 1558 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 29 Nm 257 lb-in
T2 108 Nm 956 lb-in
K1 67 Nm/mRad 593 lb-in
K2 110 Nm/mRad 974 lb-in
K3 120 Nm/mRad 1062 lb-in
Max Backlash 0.044 mRad
Hysteresis 0.29 mRad
