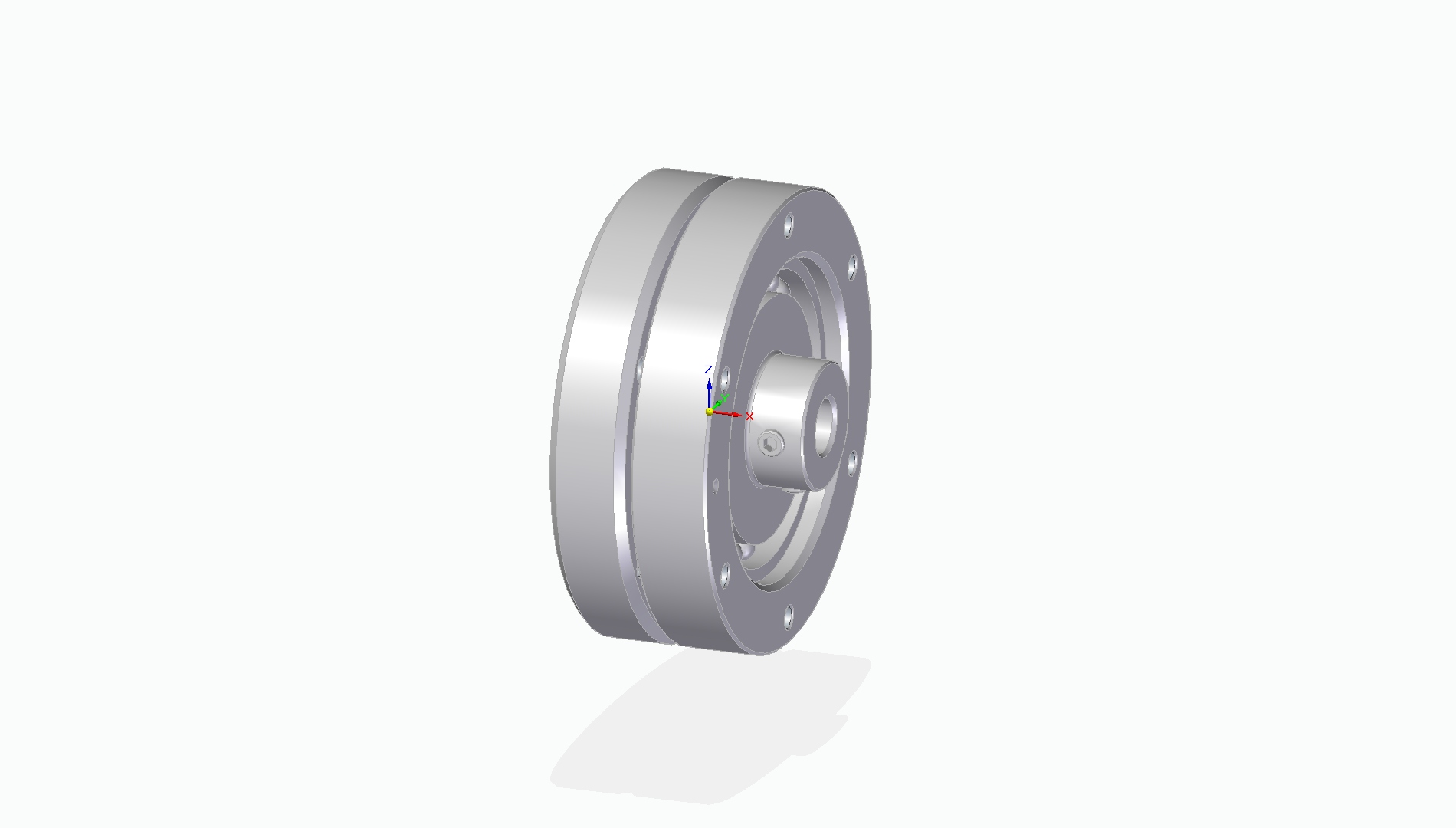

Model :RBC140080--

Series Size Ratio
RBC 14 080

Specifications
Model Number RBC140080--
Configuration Ring Big Component Set
Size 14
Ratio 80
Continuous Torque 8.2 Nm 73 lb-in
Start - Stop Torque 13.1 Nm 116 lb-in
Max Average Torque 13.1 Nm 116 lb-in
Peak Torque 23.3 Nm 206 lb-in
Efficiency 59 %
No Load Input Torque 0.064 Nm 0.57 lb-in
Starting Torque 0.011 Nm 0.097 lb-in
Backdrive Starting Torque 2.4 Nm 21.2 lb-in
Mass 0.22 Kg 0.49 lb
Drivetrain Inertia at input 6.2 10-6 kg-m2 55 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 0.39 Nm 3.5 lb-in
T2 12.3 Nm 109 lb-in
K1 0.9 Nm/mRad 8 lb-in
K2 10.1 Nm/mRad 89 lb-in
K3 - -
Max Backlash 0.43 mRad
Hysteresis 0.81 mRad
