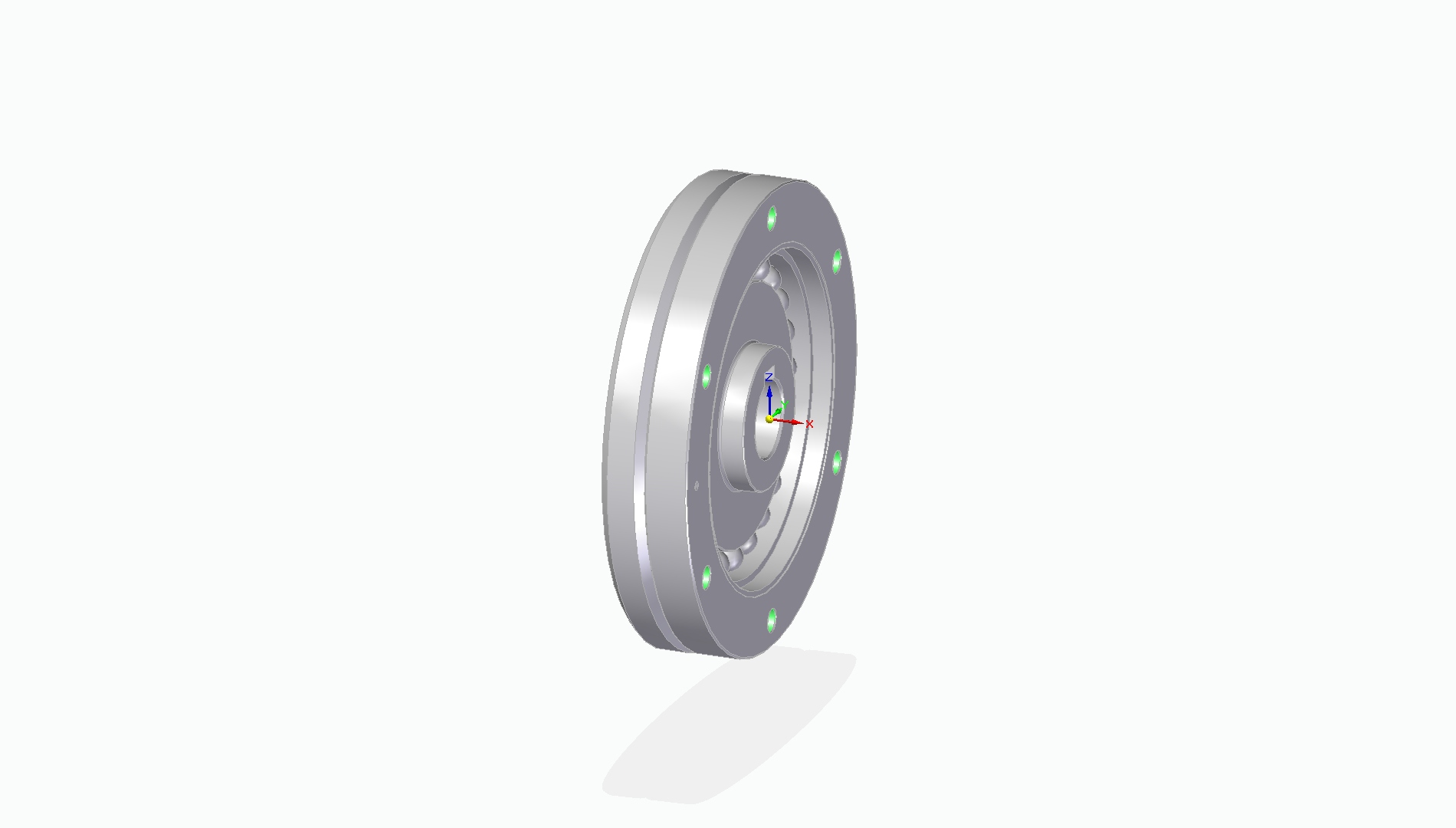

Model :RLC250120--

Series Size Ratio
RLC 25 120

Specifications
Model Number RLC250120--
Configuration Ring Little Component Set
Size 25
Ratio 120
Continuous Torque 33 Nm 292 lb-in
Start - Stop Torque 51 Nm 451 lb-in
Max Average Torque 51 Nm 451 lb-in
Peak Torque 87 Nm 770 lb-in
Efficiency 49 %
No Load Input Torque 0.19 Nm 1.7 lb-in
Starting Torque 0.019 Nm 0.17 lb-in
Backdrive Starting Torque 14.8 Nm 131 lb-in
Mass 0.48 Kg 1.1 lb
Drivetrain Inertia at input 48 10-6 kg-m2 425 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 2.3 Nm 20.4 lb-in
T2 70 Nm 620 lb-in
K1 2.5 Nm/mRad 22.1 lb-in
K2 35 Nm/mRad 310 lb-in
K3 - -
Max Backlash 0.88 mRad
Hysteresis 1.7 mRad

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
