Model :CBC140050--

Series Size Ratio
CBC 14 050

Specifications
Model Number CBC140050--
Configuration Cup Big Component Set
Size 14
Ratio 50
Continuous Torque 7.6 Nm 67 lb-in
Start - Stop Torque 24.4 Nm 216 lb-in
Max Average Torque 8.8 Nm 78 lb-in
Peak Torque 44 Nm 389 lb-in
Efficiency 72 %
No Load Input Torque 0.04 Nm 0.35 lb-in
Starting Torque 0.036 Nm 0.32 lb-in
Backdrive Starting Torque 1.5 Nm 13.3 lb-in
Mass 0.11 Kg 0.24 lb
Drivetrain Inertia at input 3.9 10-6 kg-m2 35 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 2 Nm 17.7 lb-in
T2 6.9 Nm 61 lb-in
K1 3.4 Nm/mRad 30 lb-in
K2 4.7 Nm/mRad 42 lb-in
K3 5.7 Nm/mRad 50 lb-in
Max Backlash 0.18 mRad
Hysteresis 0.58 mRad

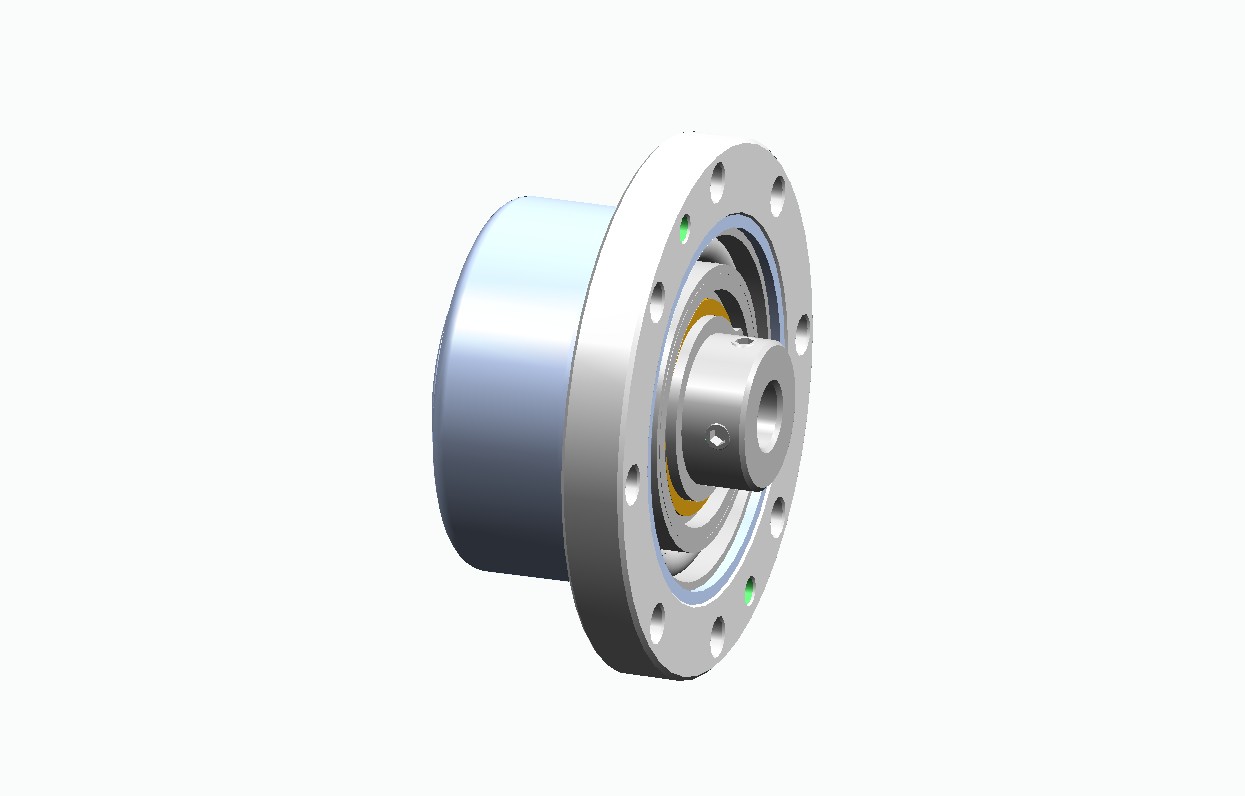

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader"
