Model :CBG171080--

Series Size Ratio
CBG 17 080

Specifications
Model Number CBG171080--

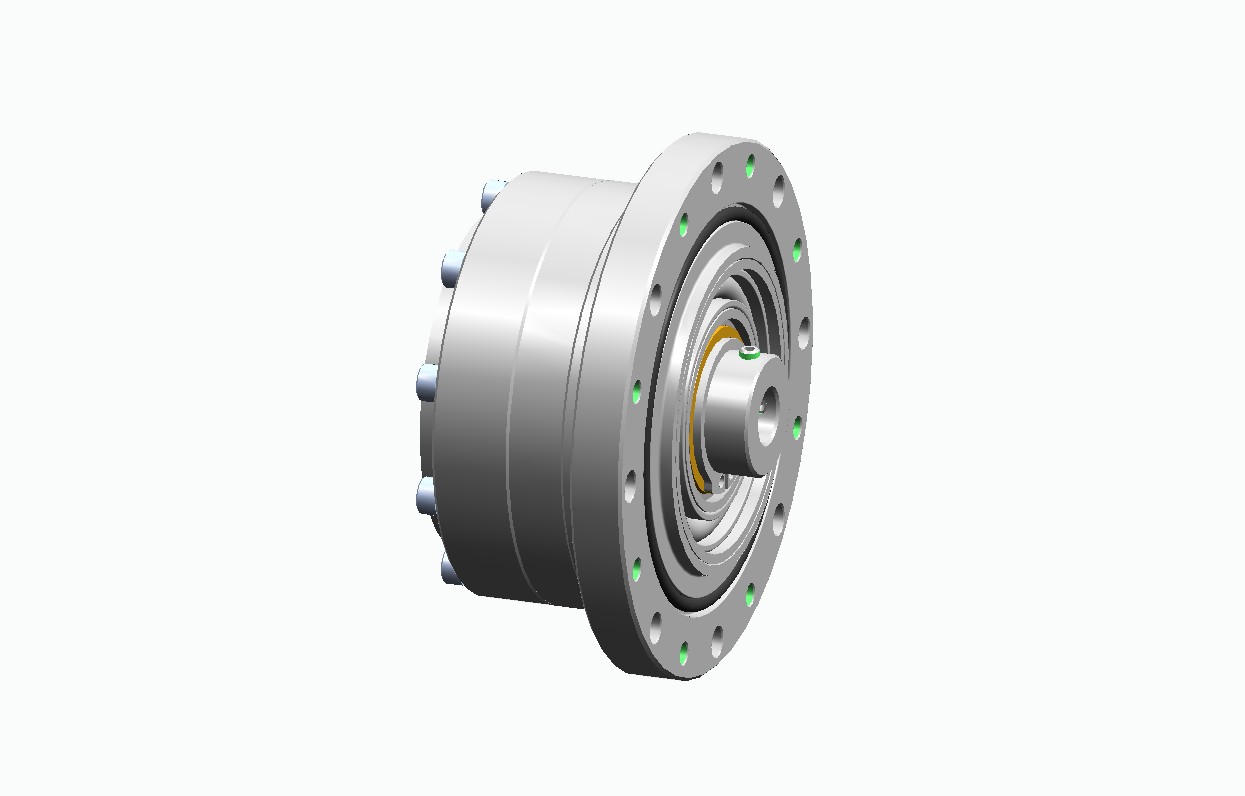

Configuration Cup Big Gearhead
Size 17
Ratio 80
Continuous Torque 28.6 Nm 253 lb-in
Start - Stop Torque 53 Nm 469 lb-in
Max Average Torque 34 Nm 301 lb-in
Peak Torque 107 Nm 947 lb-in
Efficiency 72 %
No Load Input Torque 0.076 Nm 0.67 lb-in
Starting Torque 0.044 Nm 0.39 lb-in
Backdrive Starting Torque 3.3 Nm 29.2 lb-in
Mass 0.72 Kg 1.6 lb
Drivetrain Inertia at input 9.6 10-6 kg-m2 85 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 3.9 Nm 35 lb-in
T2 12.1 Nm 107 lb-in
K1 10 Nm/mRad 89 lb-in
K2 14.1 Nm/mRad 125 lb-in
K3 15.9 Nm/mRad 141 lb-in
Max Backlash 0.063 mRad
Hysteresis 0.29 mRad
