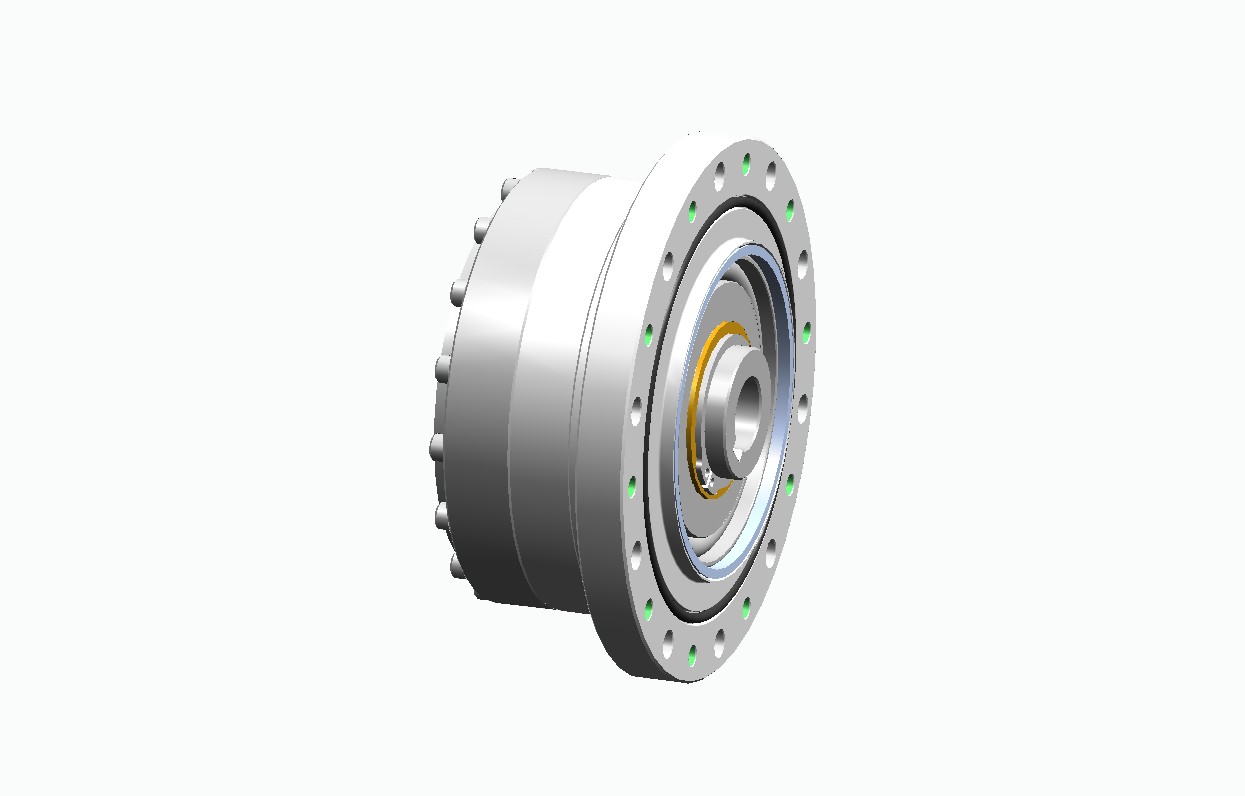

Model :CBG251080--

Series Size Ratio
CBG 25 080

Specifications
Model Number CBG251080--
Configuration Cup Big Gearhead
Size 25
Ratio 80
Continuous Torque 74 Nm 655 lb-in
Start - Stop Torque 177 Nm 1567 lb-in
Max Average Torque 112 Nm 991 lb-in
Peak Torque 307 Nm 2717 lb-in
Efficiency 73 %
No Load Input Torque 0.22 Nm 1.9 lb-in
Starting Torque 0.1 Nm 0.89 lb-in
Backdrive Starting Torque 10 Nm 89 lb-in
Mass 1.6 Kg 3.5 lb
Drivetrain Inertia at input 57 10-6 kg-m2 504 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 14 Nm 124 lb-in
T2 48 Nm 425 lb-in
K1 31 Nm/mRad 274 lb-in
K2 50 Nm/mRad 443 lb-in
K3 57 Nm/mRad 504 lb-in
Max Backlash 0.053 mRad
Hysteresis 0.29 mRad
