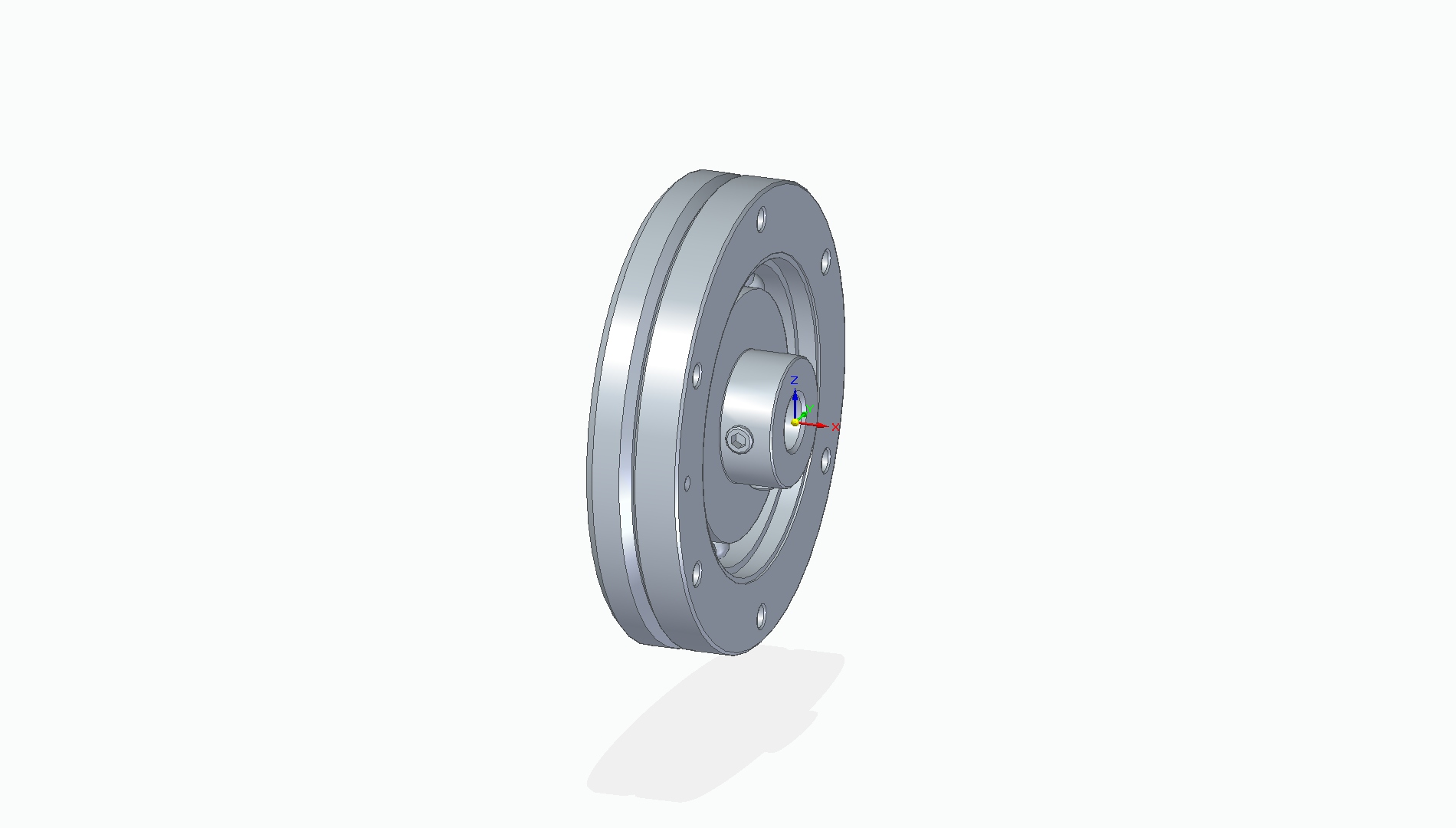

Model :RLC140080--

Series Size Ratio
RLC 14 080

Specifications
Model Number RLC140080--
Configuration Ring Little Component Set
Size 14
Ratio 80
Continuous Torque 4.1 Nm 36 lb-in
Start - Stop Torque 6.7 Nm 59 lb-in
Max Average Torque 6.7 Nm 59 lb-in
Peak Torque 14.6 Nm 129 lb-in
Efficiency 55 %
No Load Input Torque 0.036 Nm 0.32 lb-in
Starting Torque 0.01 Nm 0.089 lb-in
Backdrive Starting Torque 1.5 Nm 13.3 lb-in
Mass 0.13 Kg 0.29 lb
Drivetrain Inertia at input 3.4 10-6 kg-m2 30 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 0.39 Nm 3.5 lb-in
T2 12.3 Nm 109 lb-in
K1 0.44 Nm/mRad 3.9 lb-in
K2 5 Nm/mRad 44 lb-in
K3 - -
Max Backlash 0.88 mRad
Hysteresis 1.6 mRad
