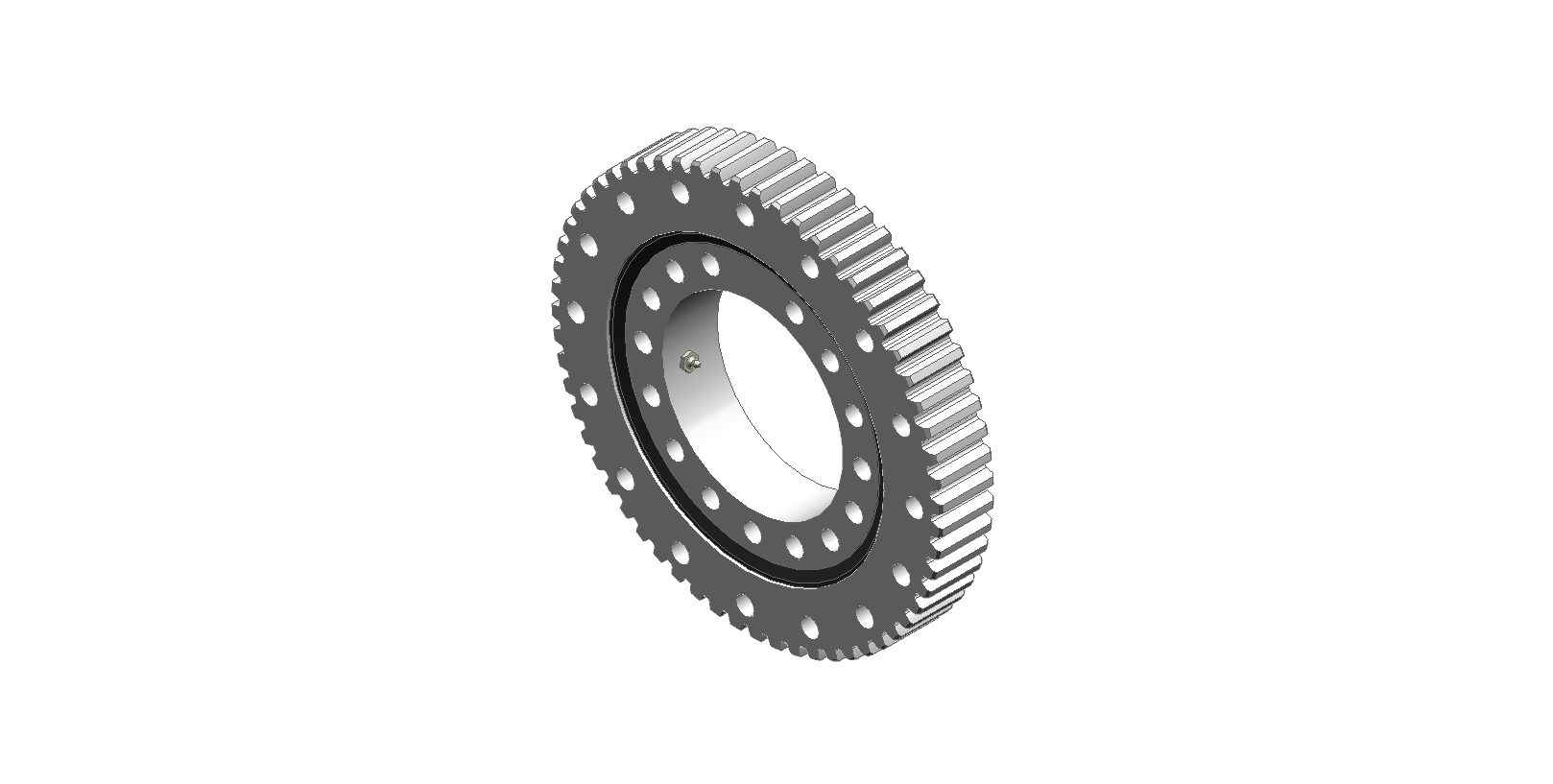

Model : CD-MTE-145X
Specification Imperial Metric
SPINEA Part Number CD-MTE-145X
Reference Kaydon Part Number MTE-145X
Reference Torriani Part Number N/A
Type Standard
Teeth External

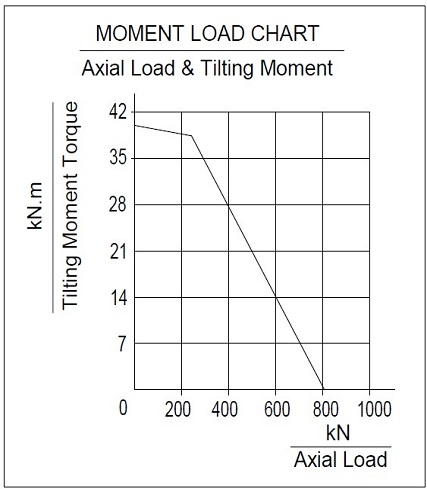

Max Moment Rating 30,600 ft-lbs 41,492 Nm
Approx. Weight 38 lbs 17.2 kg
Outer Diameter 12.286 in 312.06 mm
Inner Diameter 5.709 in 145 mm
Outer Bolt Circle Diameter 10.63 in 270.0 mm
Qty of Holes in Outer Ring 16
Outer Hole Size 0.591 in 15 mm
Inner Bolt Circle Diameter 6.89 in 175.0 mm
Qty of Holes in Inner Ring 15
Inner Hole Size 0.591 in 15 mm
