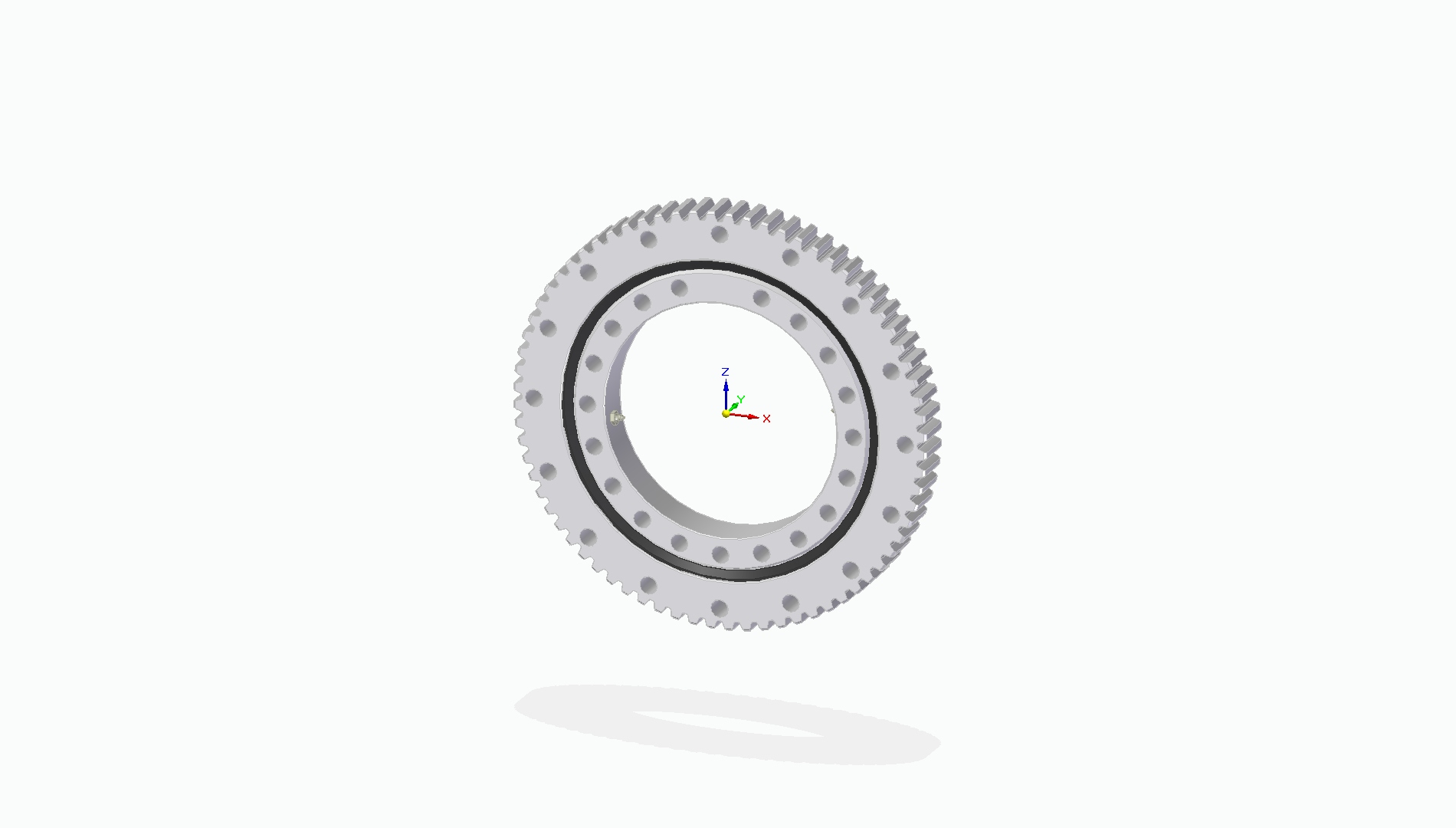

Model : CD-MTE-210T
Specification Imperial Metric
SPINEA Part Number CD-MTE-210T
Reference Kaydon Part Number MTE-210T
Reference Torriani Part Number N/A
Type Standard
Teeth External

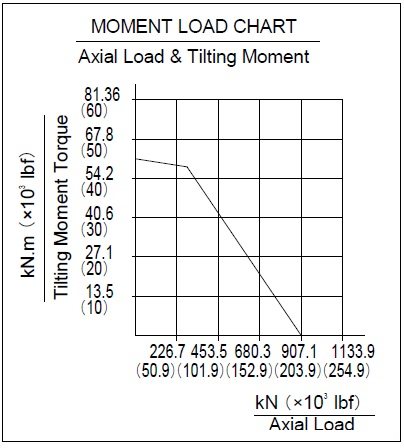

Max Moment Rating 44,500 ft-lbs 60,339 Nm
Approx. Weight 38 lbs 17.2 kg
Outer Diameter 14.686 in 373.02 mm
Inner Diameter 8.268 in 210 mm
Outer Bolt Circle Diameter 13.19 in 335.0 mm
Qty of Holes in Outer Ring 16
Outer Hole Size 5/8 - 11 UNC-2B in 5/8 - 11 UNC-2B in
Inner Bolt Circle Diameter 9.449 in 240.0 mm
Qty of Holes in Inner Ring 19
Inner Hole Size 5/8 - 11 UNC-2B in 5/8 - 11 UNC-2B in




Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
