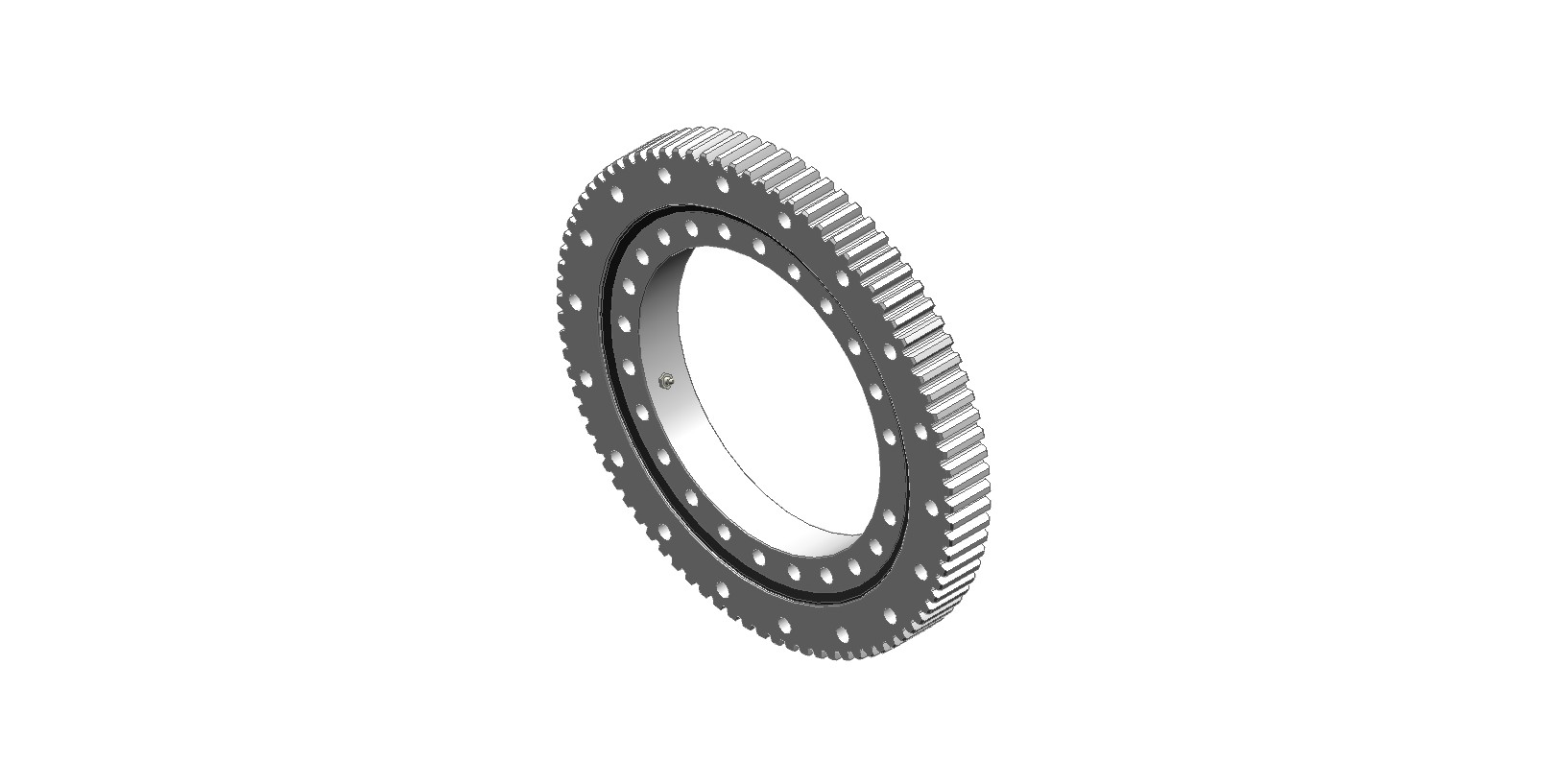

Model : CD-MTE-265X
Specification Imperial Metric
SPINEA Part Number CD-MTE-265X
Reference Kaydon Part Number MTE-265X
Reference Torriani Part Number N/A
Type Standard
Teeth External

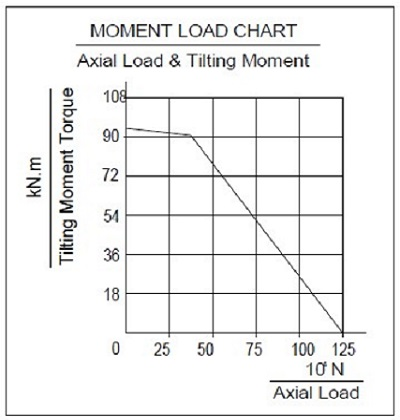

Max Moment Rating 71,900 ft-lbs 97,492 Nm
Approx. Weight 58 lbs 26.3 kg
Outer Diameter 17.086 in 434 mm
Inner Diameter 10.433 in 265 mm
Outer Bolt Circle Diameter 15.354 in 390.0 mm
Qty of Holes in Outer Ring 18
Outer Hole Size 0.591 in 15 mm
Inner Bolt Circle Diameter 11.614 in 295.0 mm
Qty of Holes in Inner Ring 23
Inner Hole Size 0.591 in 15 mm




Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
