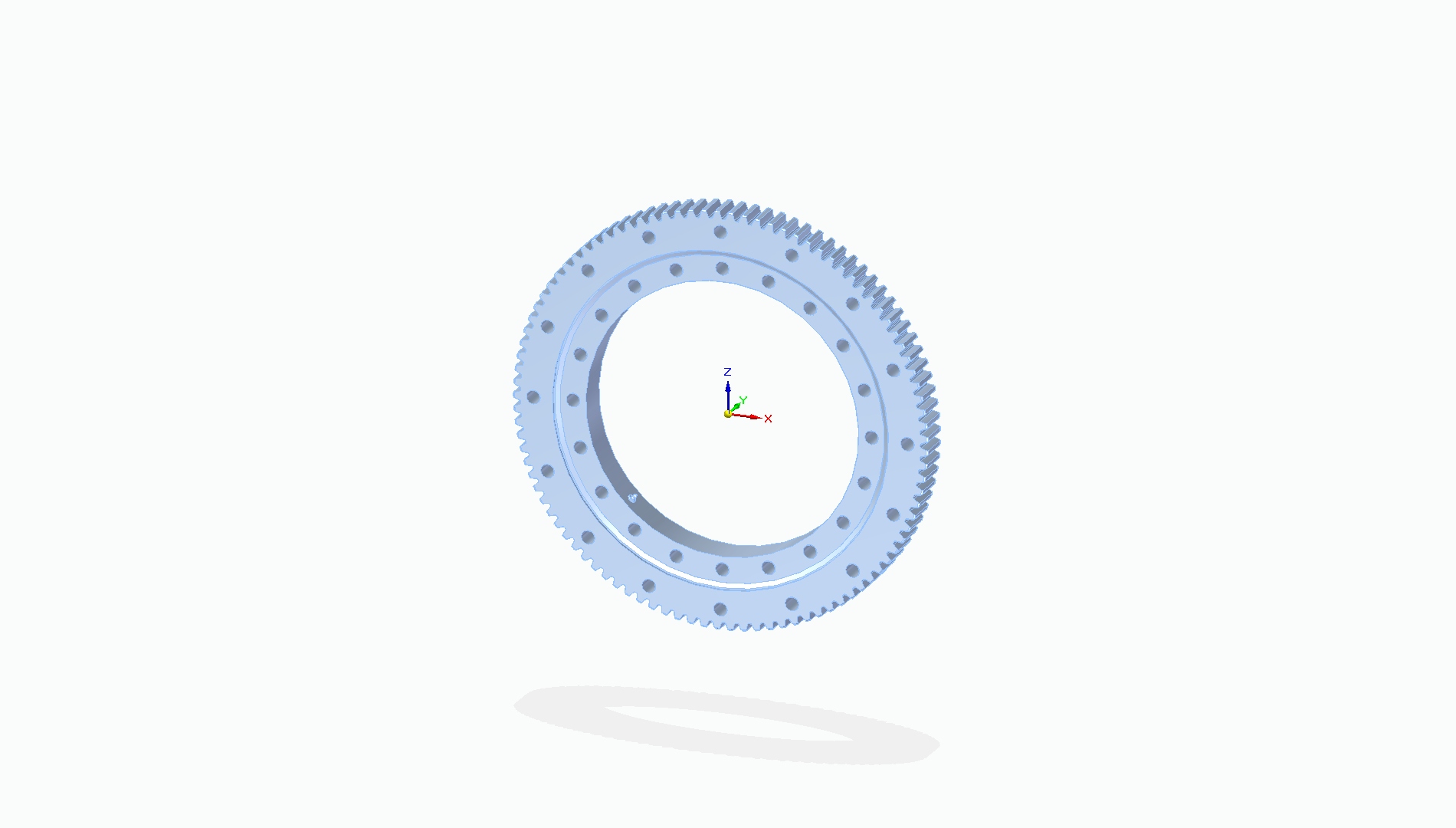

Model : CD-MTE-415
Specification Imperial Metric
SPINEA Part Number CD-MTE-415
Reference Kaydon Part Number MTE-415
Reference Torriani Part Number N/A
Type Standard
Teeth External

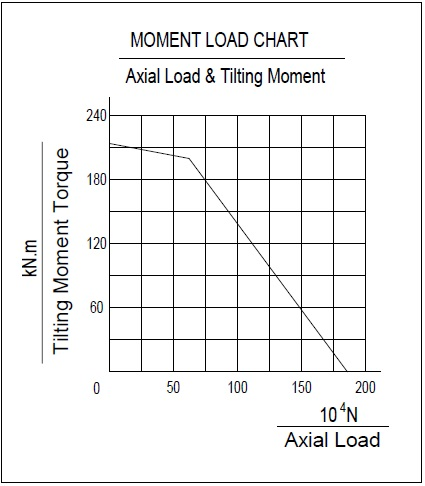

Max Moment Rating 159,200 ft-lbs 215,864 Nm
Approx. Weight 132 lbs 59.9 kg
Outer Diameter 24.65 in 626.11 mm
Inner Diameter 16.25 in 413 mm
Outer Bolt Circle Diameter 22.25 in 565.2 mm
Qty of Holes in Outer Ring 16
Outer Hole Size 0.827 in 21 mm
Inner Bolt Circle Diameter 17.75 in 450.9 mm
Qty of Holes in Inner Ring 20
Inner Hole Size 0.827 in 21 mm




Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
