Specification	Imperial	Metric
SPINEA Part Number	CD-MTE-470
Reference Kaydon Part Number	MTE-470
Reference Torriani Part Number	N/A
Type	Standard
Teeth	External

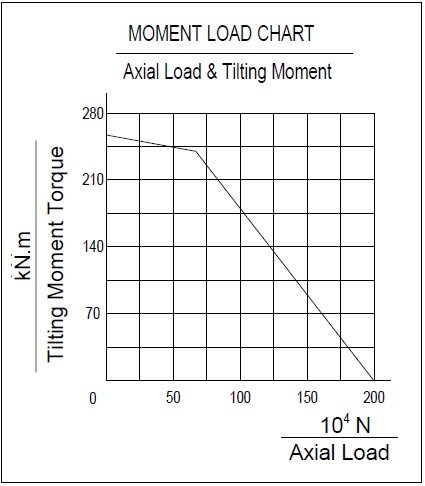

Max Moment Rating	191,600 ft-lbs	259,797 Nm
Approx. Weight	147 lbs	66.7 kg
Outer Diameter	26.9 in	683.26 mm
Inner Diameter	18.5 in	470 mm
Outer Bolt Circle Diameter	24.5 in	622.3 mm
Qty of Holes in Outer Ring	18
Outer Hole Size	0.827 in	21 mm
Inner Bolt Circle Diameter	20 in	508 mm
Qty of Holes in Inner Ring	24
Inner Hole Size	0.827 in	21 mm

	Part No	PD (in)	Tooth Qty	Set Ratio
	39200001	3.500	14	7.57
	39200002	4.250	17	6.24

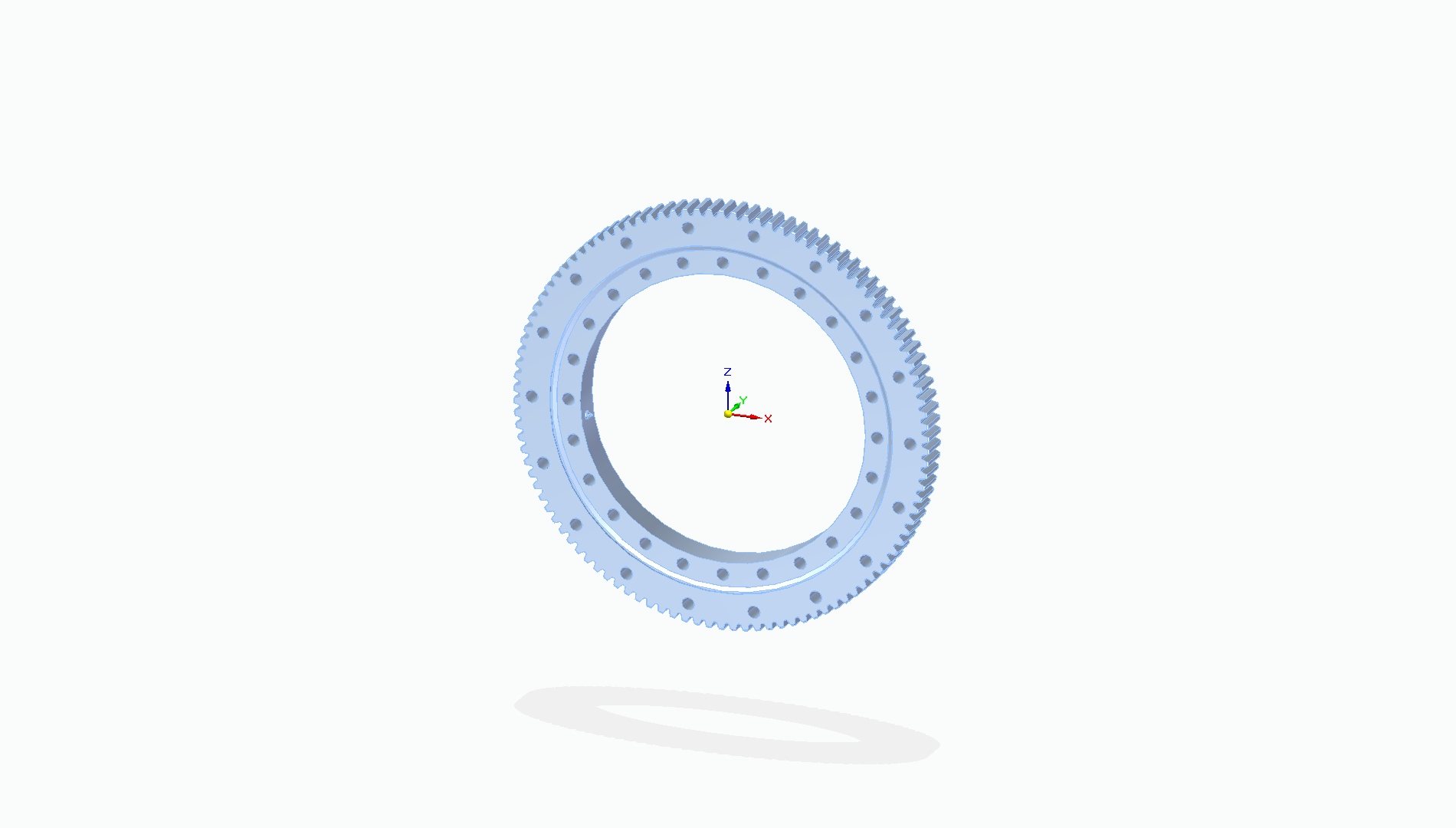

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
