Model : CD-MTE-470T
Specification Imperial Metric
SPINEA Part Number CD-MTE-470T
Reference Kaydon Part Number MTE-470T
Reference Torriani Part Number N/A
Type Standard
Teeth External

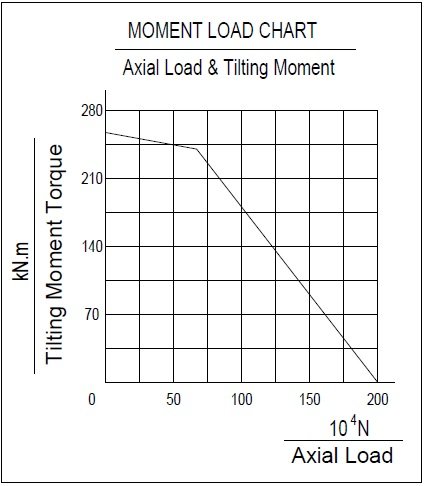

Max Moment Rating 191,600 ft-lbs 259,797 Nm
Approx. Weight 147 lbs 66.7 kg
Outer Diameter 26.9 in 683.26 mm
Inner Diameter 18.5 in 470 mm
Outer Bolt Circle Diameter 24.5 in 622.3 mm
Qty of Holes in Outer Ring 18
Outer Hole Size 3/4 - 10 UNC-2B in 3/4 - 10 UNC-2B in
Inner Bolt Circle Diameter 20 in 508.0 mm
Qty of Holes in Inner Ring 24
Inner Hole Size 3/4 - 10 UNC-2B in 3/4 - 10 UNC-2B in

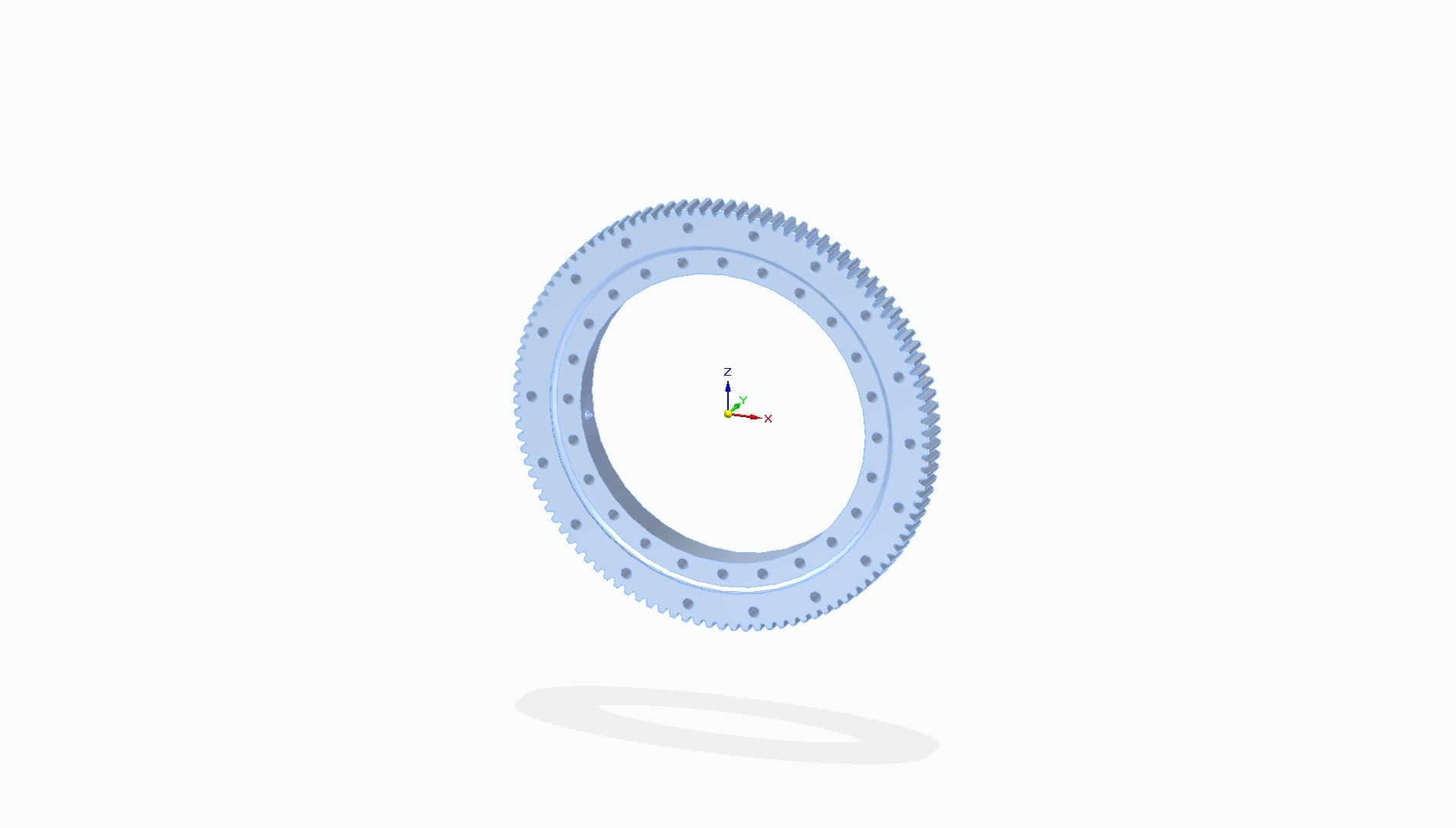

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
