Model : CD-MTE-705T
Specification Imperial Metric
SPINEA Part Number CD-MTE-705T
Reference Kaydon Part Number MTE-705T
Reference Torriani Part Number N/A
Type Standard
Teeth External

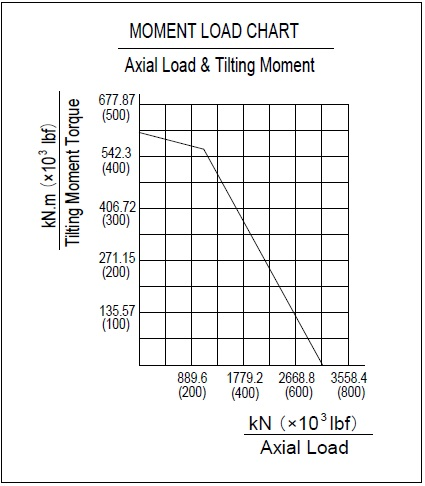

Max Moment Rating 443,200 ft-lbs 600,949 Nm
Approx. Weight 325 lbs 147.4 kg
Outer Diameter 38.201 in 970.31 mm
Inner Diameter 27.75 in 705 mm
Outer Bolt Circle Diameter 35.25 in 895.4 mm
Qty of Holes in Outer Ring 24
Outer Hole Size 7/8 - 9 UNC 2B in 7/8 - 9 UNC 2B in
Inner Bolt Circle Diameter 29.5 in 749.3 mm
Qty of Holes in Inner Ring 28
Inner Hole Size 7/8 - 9 UNC 2B in 7/8 - 9 UNC 2B in




Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
