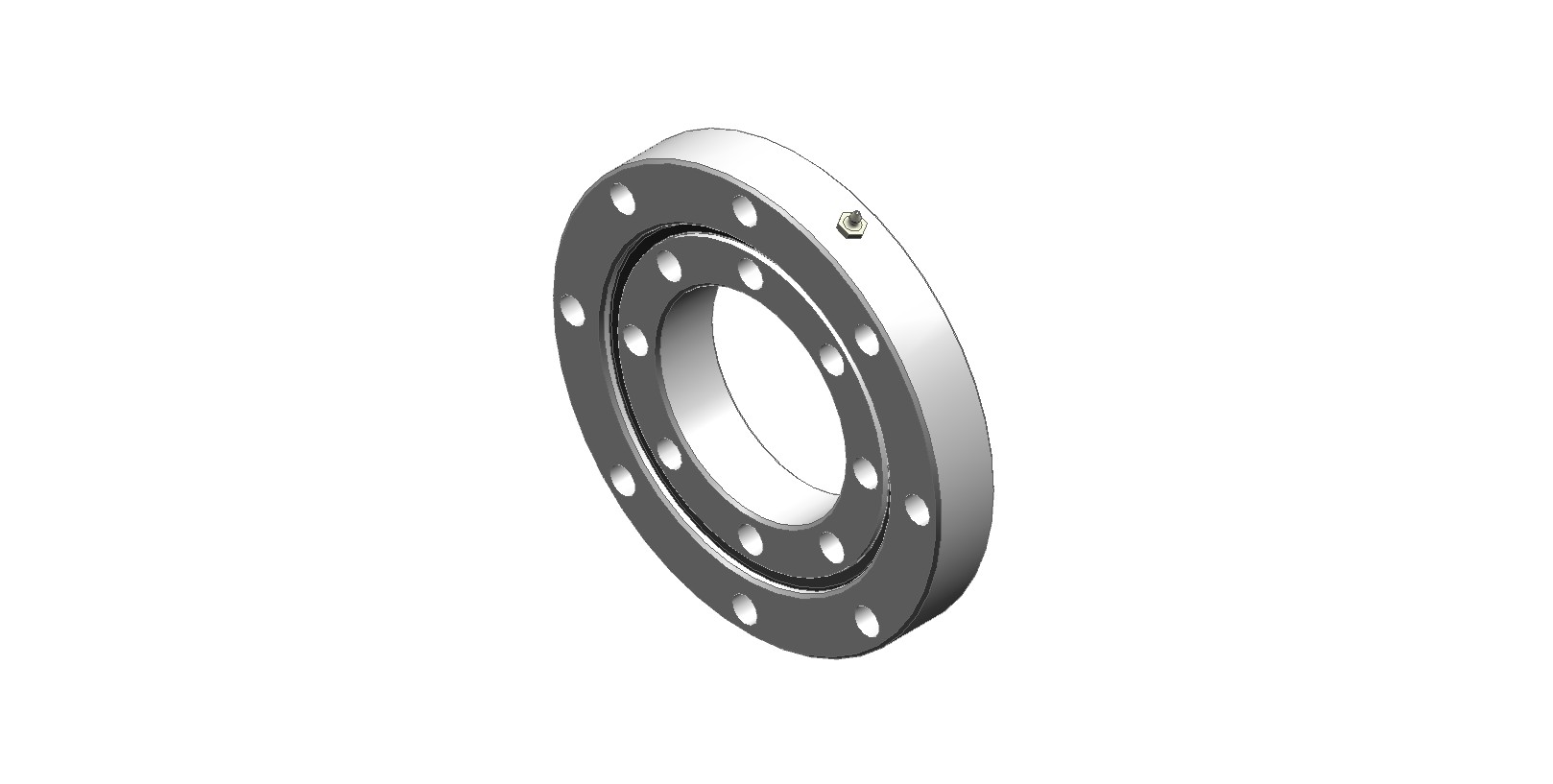

Model : CD-MTO-065
Specification Imperial Metric
SPINEA Part Number CD-MTO-065
Reference Kaydon Part Number MTO-065
Reference Torriani Part Number N/A
Type Standard
Teeth None

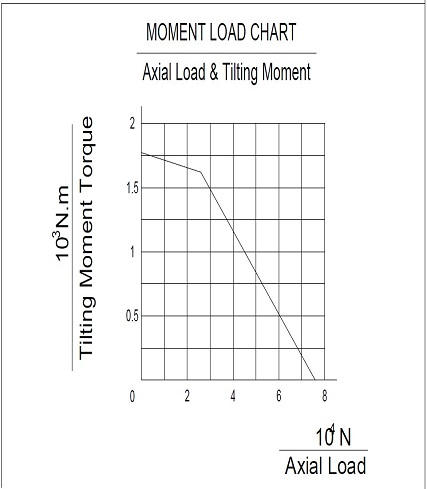

Max Moment Rating 1,330 ft-lbs 1,803 Nm
Approx. Weight 4 lbs 1.8 kg
Outer Diameter 5.315 in 135.0 mm
Inner Diameter 2.559 in 65 mm
Outer Bolt Circle Diameter 4.724 in 120.0 mm
Qty of Holes in Outer Ring 8
Outer Hole Size 0.354 in 9 mm
Inner Bolt Circle Diameter 3.149 in 80.0 mm
Qty of Holes in Inner Ring 8
Inner Hole Size 0.354 in 9 mm


Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
