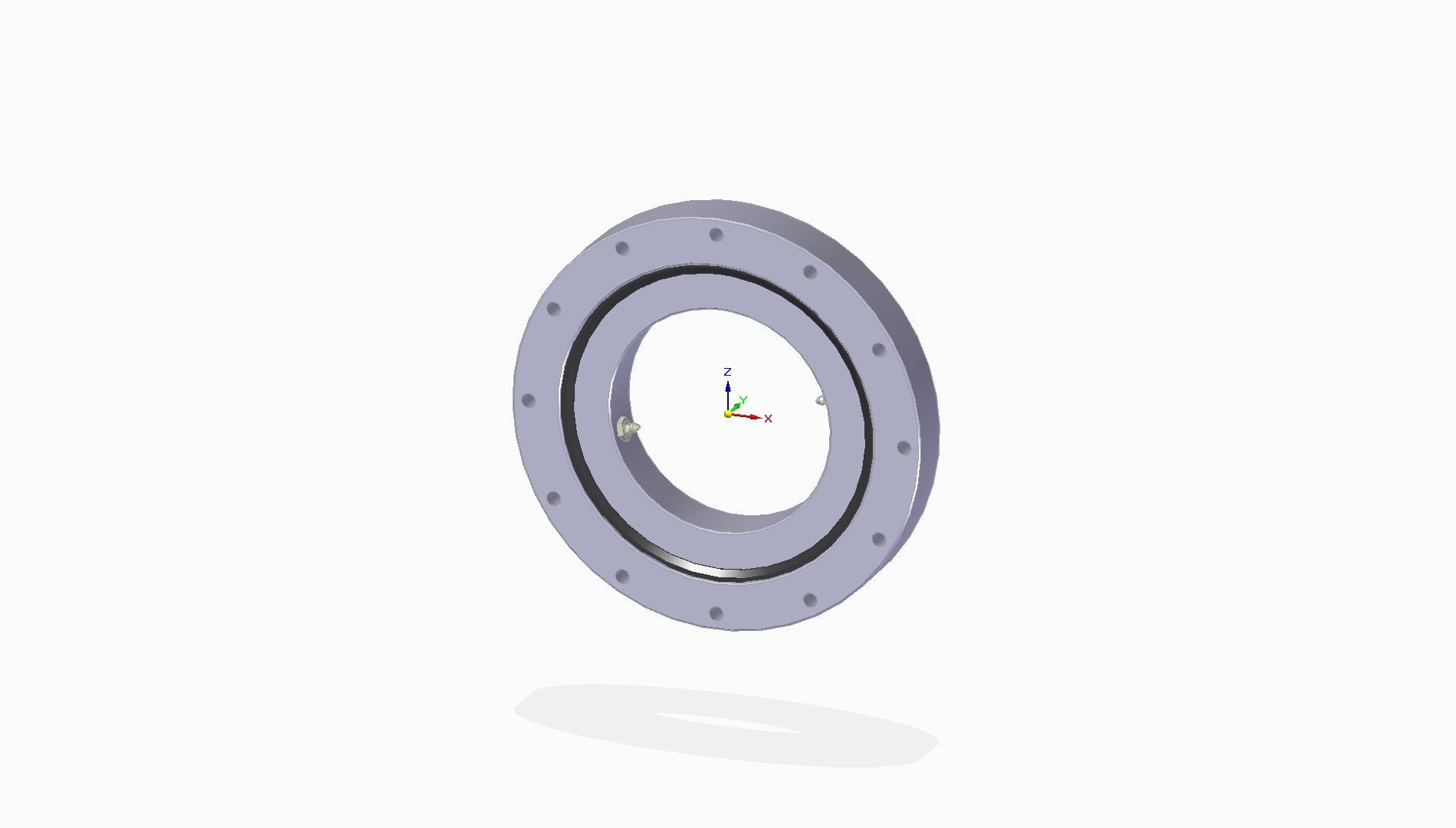

Model : CD-MTO-122T
Specification Imperial Metric
SPINEA Part Number CD-MTO-122T
Reference Kaydon Part Number MTO-122T
Reference Torriani Part Number N/A
Type Standard
Teeth None

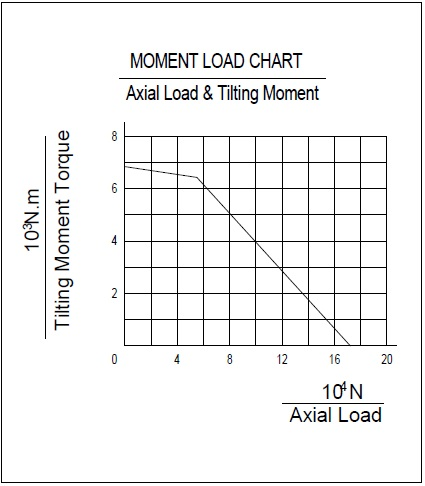

Max Moment Rating 5,020 ft-lbs 6,807 Nm
Approx. Weight 13 lbs 5.9 kg
Outer Diameter 8.898 in 226 mm
Inner Diameter 4.803 in 122 mm
Outer Bolt Circle Diameter 8.189 in 208 mm
Qty of Holes in Outer Ring 12
Outer Hole Size M8 x 1.25 in M8 x 1.25 in
Inner Bolt Circle Diameter 5.512 in 140 mm
Qty of Holes in Inner Ring 12
Inner Hole Size M8 x 1.25 in M8 x 1.25 in


Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
