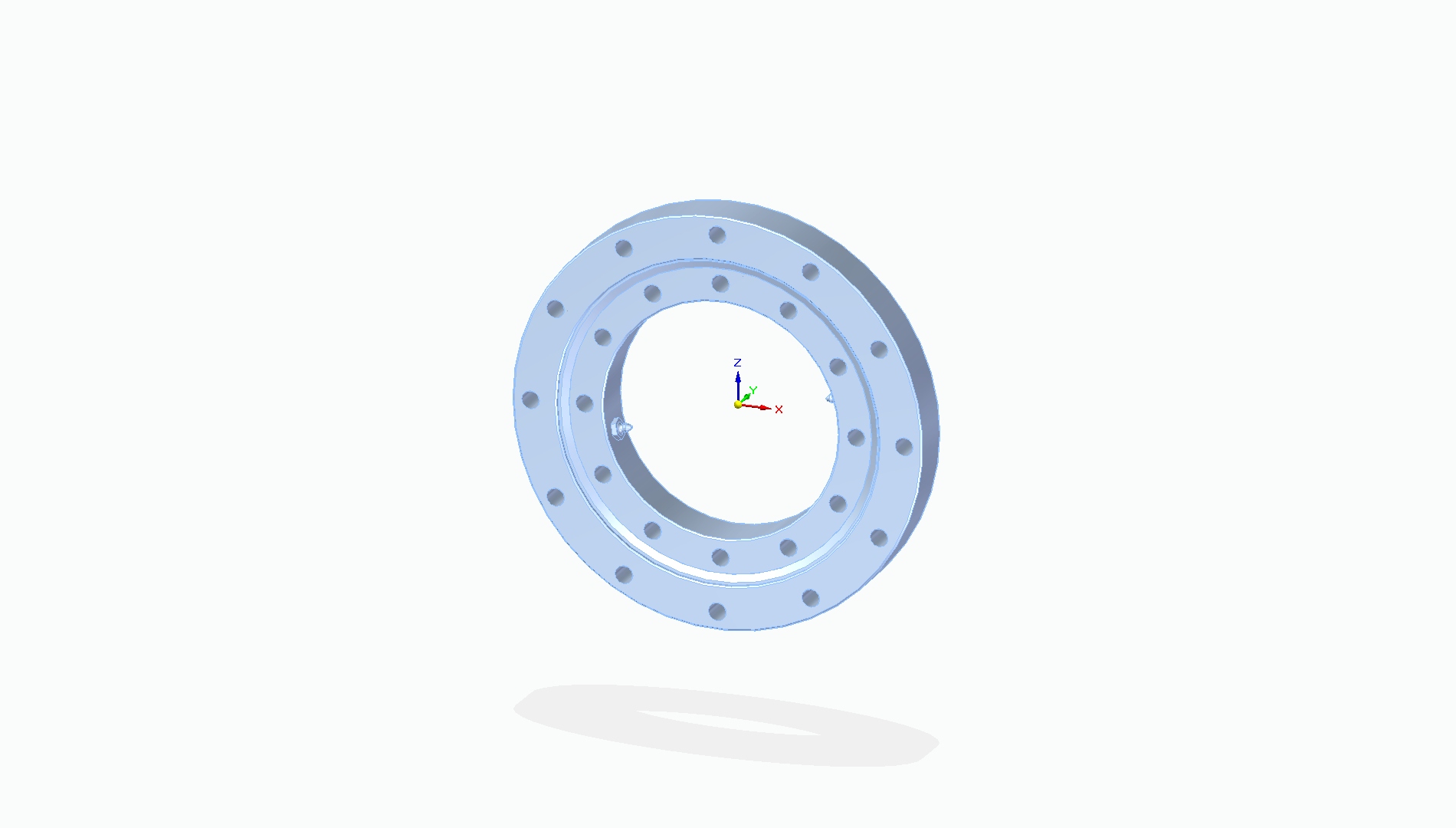

Model : CD-MTO-143
Specification Imperial Metric
SPINEA Part Number CD-MTO-143
Reference Kaydon Part Number MTO-143
Reference Torriani Part Number N/A
Type Standard
Teeth None

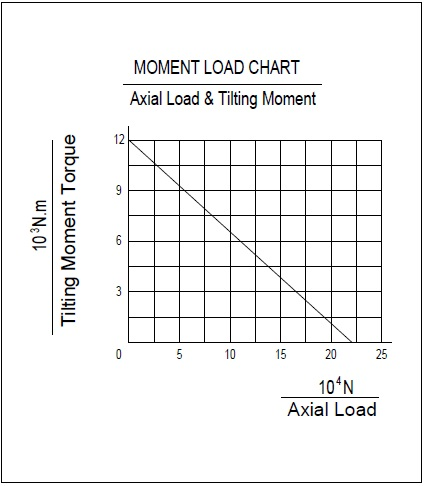

Max Moment Rating 8,950 ft-lbs 12,136 Nm
Approx. Weight 15 lbs 6.8 kg
Outer Diameter 9.803 in 249 mm
Inner Diameter 5.63 in 143 mm
Outer Bolt Circle Diameter 8.937 in 227 mm
Qty of Holes in Outer Ring 12
Outer Hole Size 0.433 in 11 mm
Inner Bolt Circle Diameter 6.496 in 165 mm
Qty of Holes in Inner Ring 12
Inner Hole Size 0.433 in 11 mm


Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
