Model : CD-MTO-170T
Specification Imperial Metric
SPINEA Part Number CD-MTO-170T
Reference Kaydon Part Number MTO-170T
Reference Torriani Part Number N/A
Type Standard
Teeth None

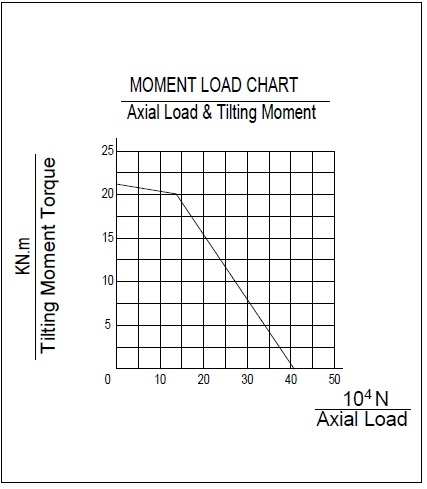

Max Moment Rating 16,520 ft-lbs 22,400 Nm
Approx. Weight 33 lbs 15.0 kg
Outer Diameter 12.205 in 310 mm
Inner Diameter 6.693 in 170 mm
Outer Bolt Circle Diameter 11.024 in 280 mm
Qty of Holes in Outer Ring 12
Outer Hole Size M12 x 1.75 in M12 x 1.75 in
Inner Bolt Circle Diameter 7.874 in 200 mm
Qty of Holes in Inner Ring 12
Inner Hole Size M12 x 1.75 in M12 x 1.75 in

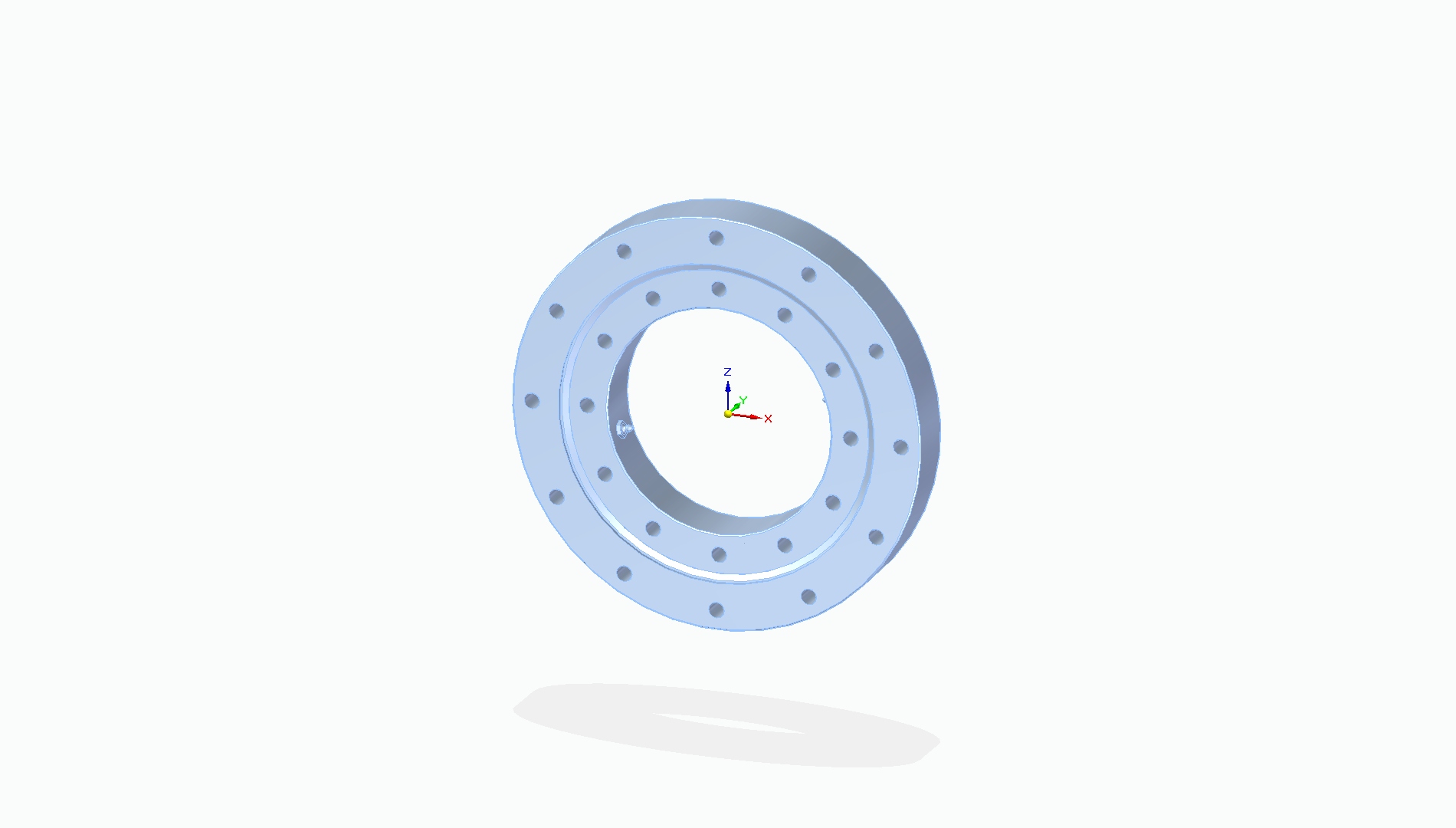

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
