Model : CD-MTO-470
Specification Imperial Metric
SPINEA Part Number CD-MTO-470
Reference Kaydon Part Number MTO-470
Reference Torriani Part Number N/A
Type Standard
Teeth None

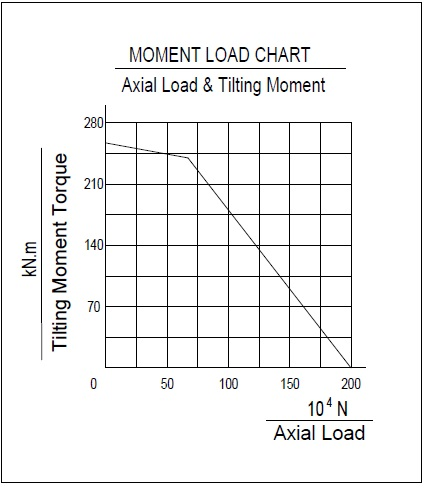

Max Moment Rating 188,000 ft-lbs 254,915 Nm
Approx. Weight 155 lbs 70.3 kg
Outer Diameter 26.9 in 683 mm
Inner Diameter 18.5 in 470 mm
Outer Bolt Circle Diameter 24.5 in 622 mm
Qty of Holes in Outer Ring 18
Outer Hole Size 0.827 in 21 mm
Inner Bolt Circle Diameter 20 in 508 mm
Qty of Holes in Inner Ring 24
Inner Hole Size 0.827 in 21 mm

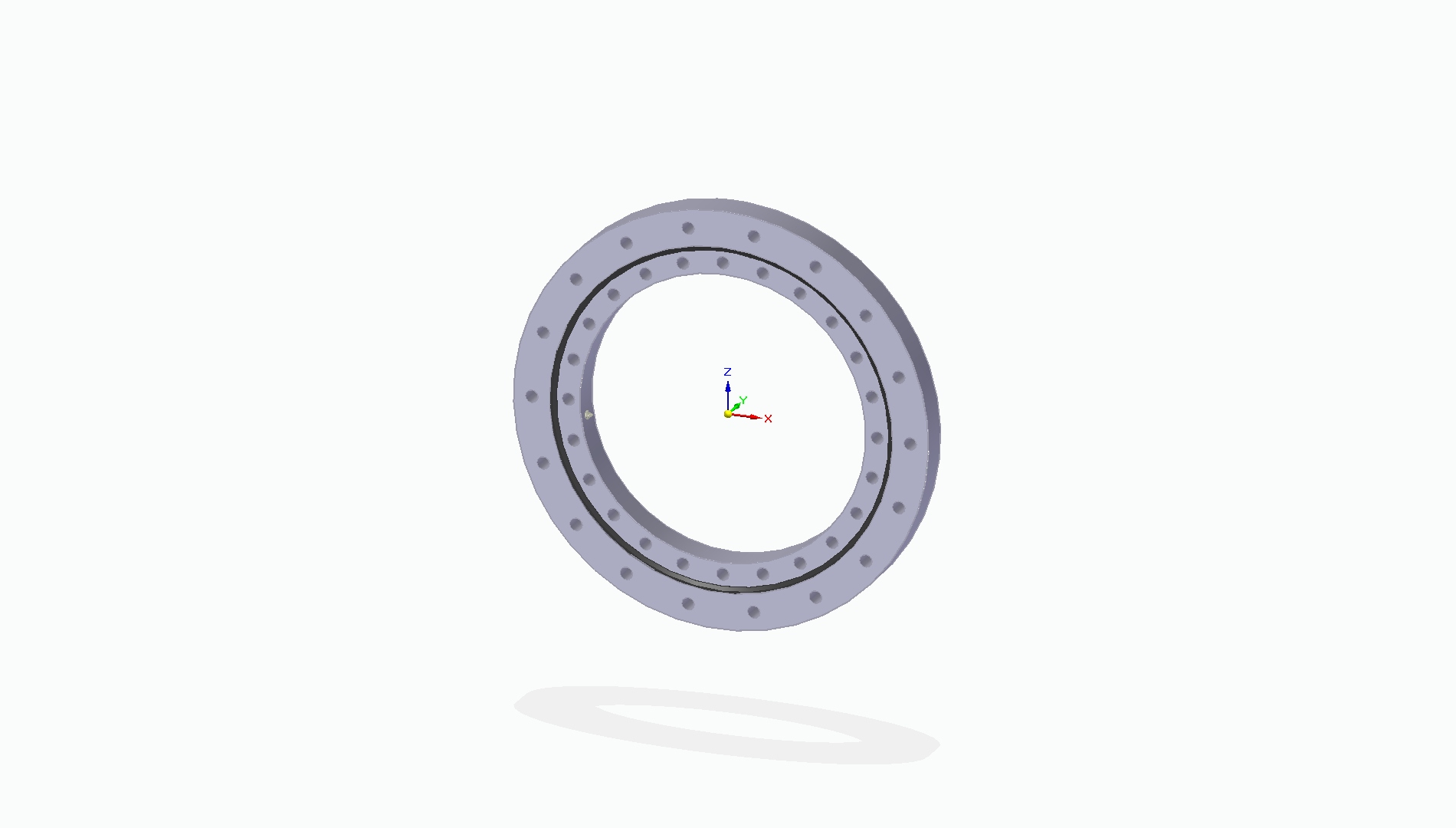

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
