Model : CD-MTO-540T
Specification Imperial Metric
SPINEA Part Number CD-MTO-540T
Reference Kaydon Part Number MTO-540T
Reference Torriani Part Number N/A
Type Standard
Teeth None

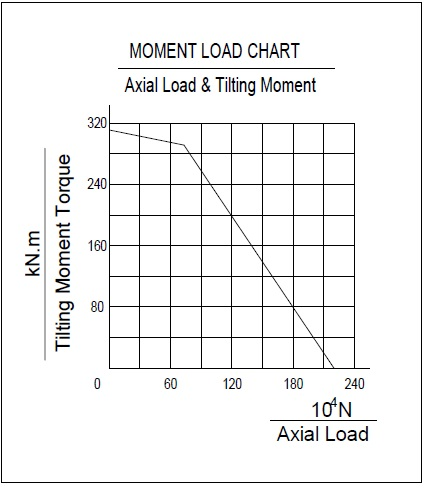

Max Moment Rating 232,000 ft-lbs 314,576 Nm
Approx. Weight 180 lbs 81.6 kg
Outer Diameter 29.65 in 753 mm
Inner Diameter 21.25 in 540 mm
Outer Bolt Circle Diameter 27.25 in 692 mm
Qty of Holes in Outer Ring 24
Outer Hole Size 3/4-10 UNC-2B in 3/4-10 UNC-2B in
Inner Bolt Circle Diameter 22.75 in 578 mm
Qty of Holes in Inner Ring 28
Inner Hole Size 3/4-10 UNC-2B in 3/4-10 UNC-2B in

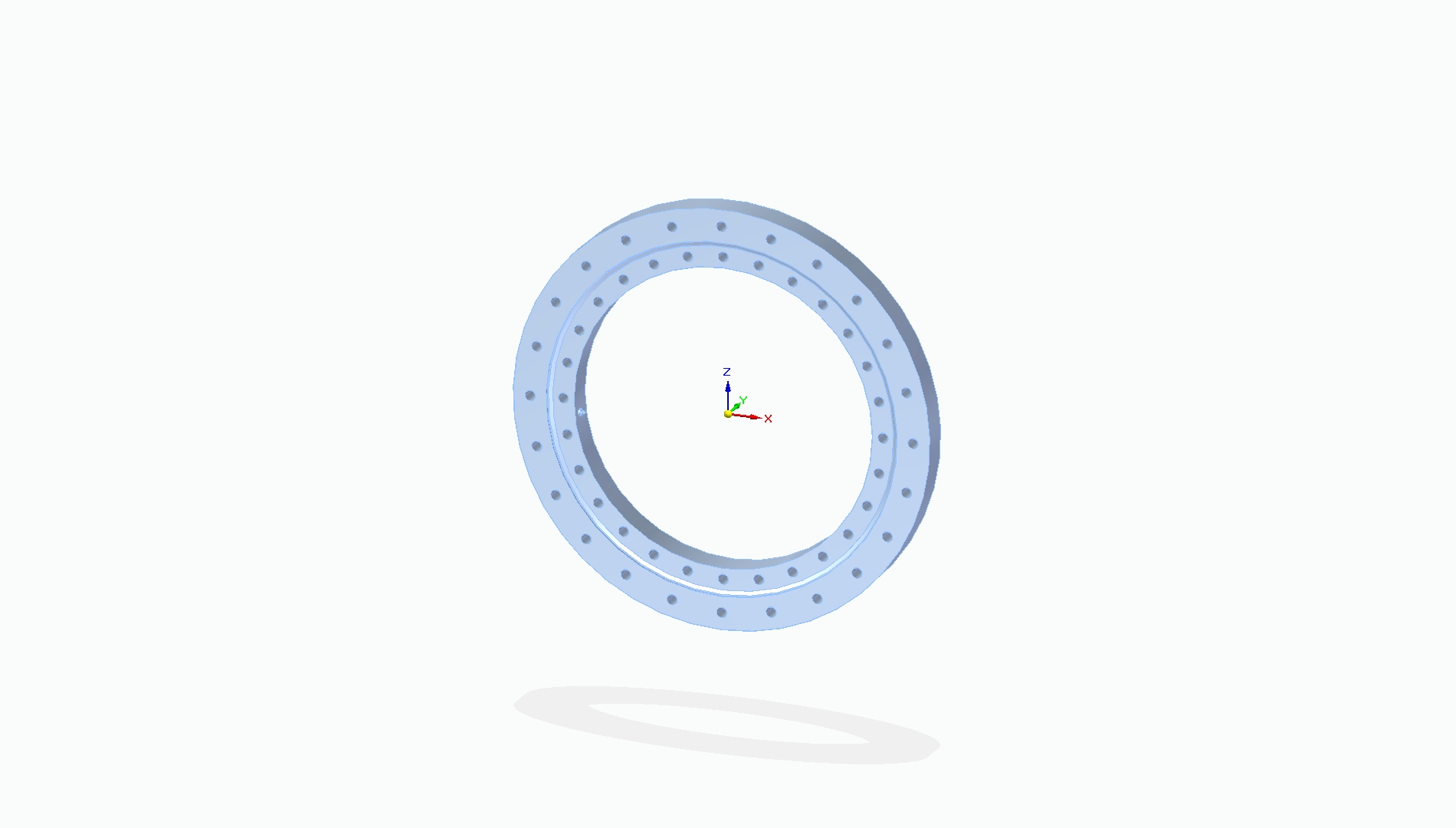

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
