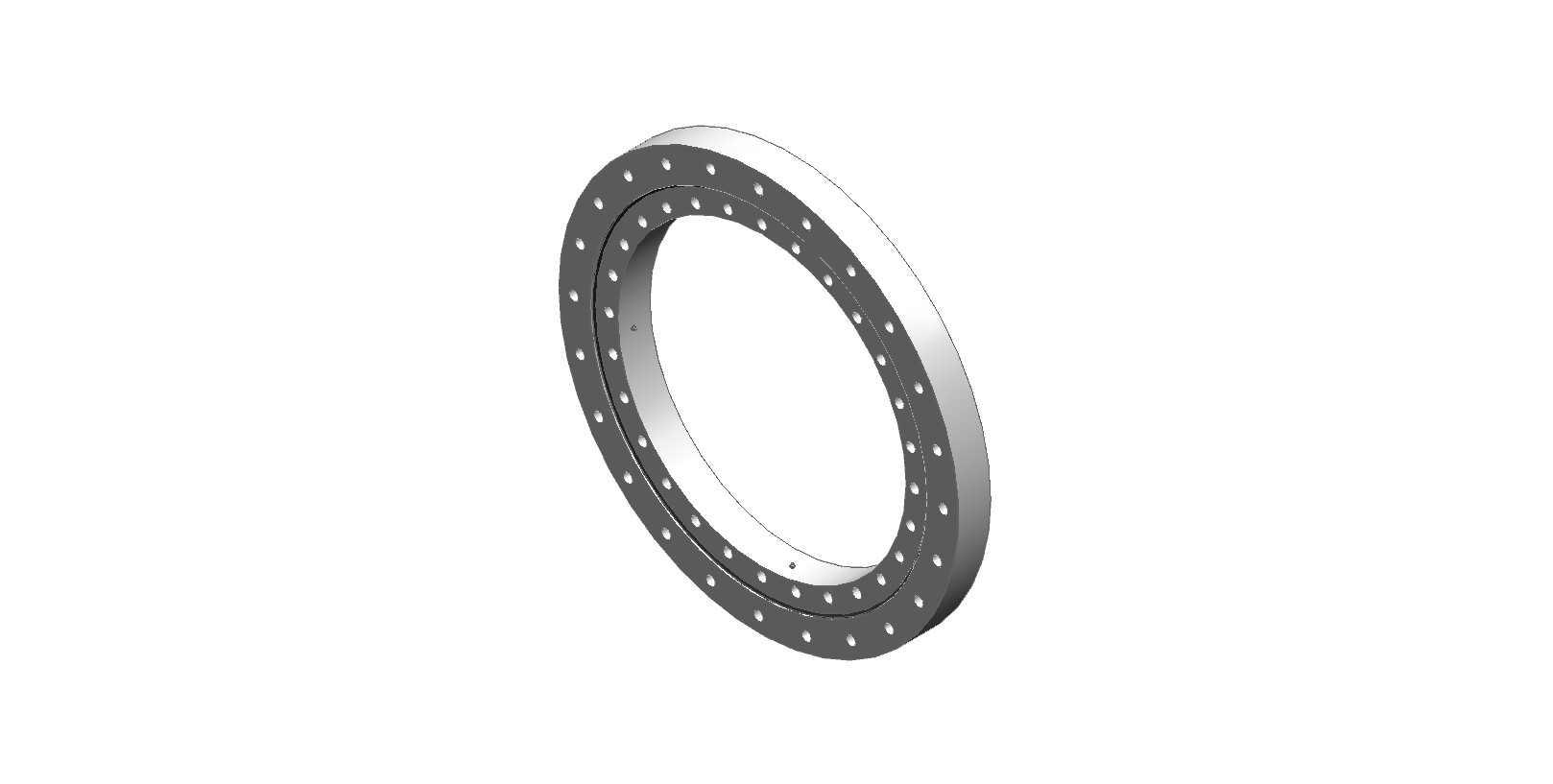

Model : CD-MTO-870T
Specification Imperial Metric
SPINEA Part Number CD-MTO-870T
Reference Kaydon Part Number MTO-870T
Reference Torriani Part Number N/A
Type Standard
Teeth None

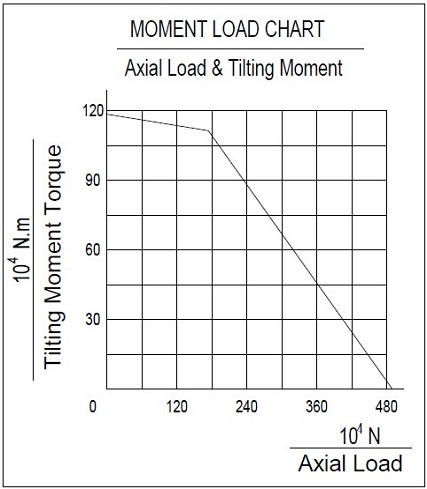

Max Moment Rating 873,000 ft-lbs 1,183,729 Nm
Approx. Weight 836 lbs 379.2 kg
Outer Diameter 47.444 in 1,205 mm
Inner Diameter 34.25 in 870 mm
Outer Bolt Circle Diameter 43.875 in 1114.425 mm
Qty of Holes in Outer Ring 24
Outer Hole Size 1-1/8-7 UNC-2B in 1-1/8-7 UNC-2B in
Inner Bolt Circle Diameter 36.25 in 920.75 mm
Qty of Holes in Inner Ring 28
Inner Hole Size 1-1/8-7 UNC-2B in 1-1/8-7 UNC-2B in


Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
