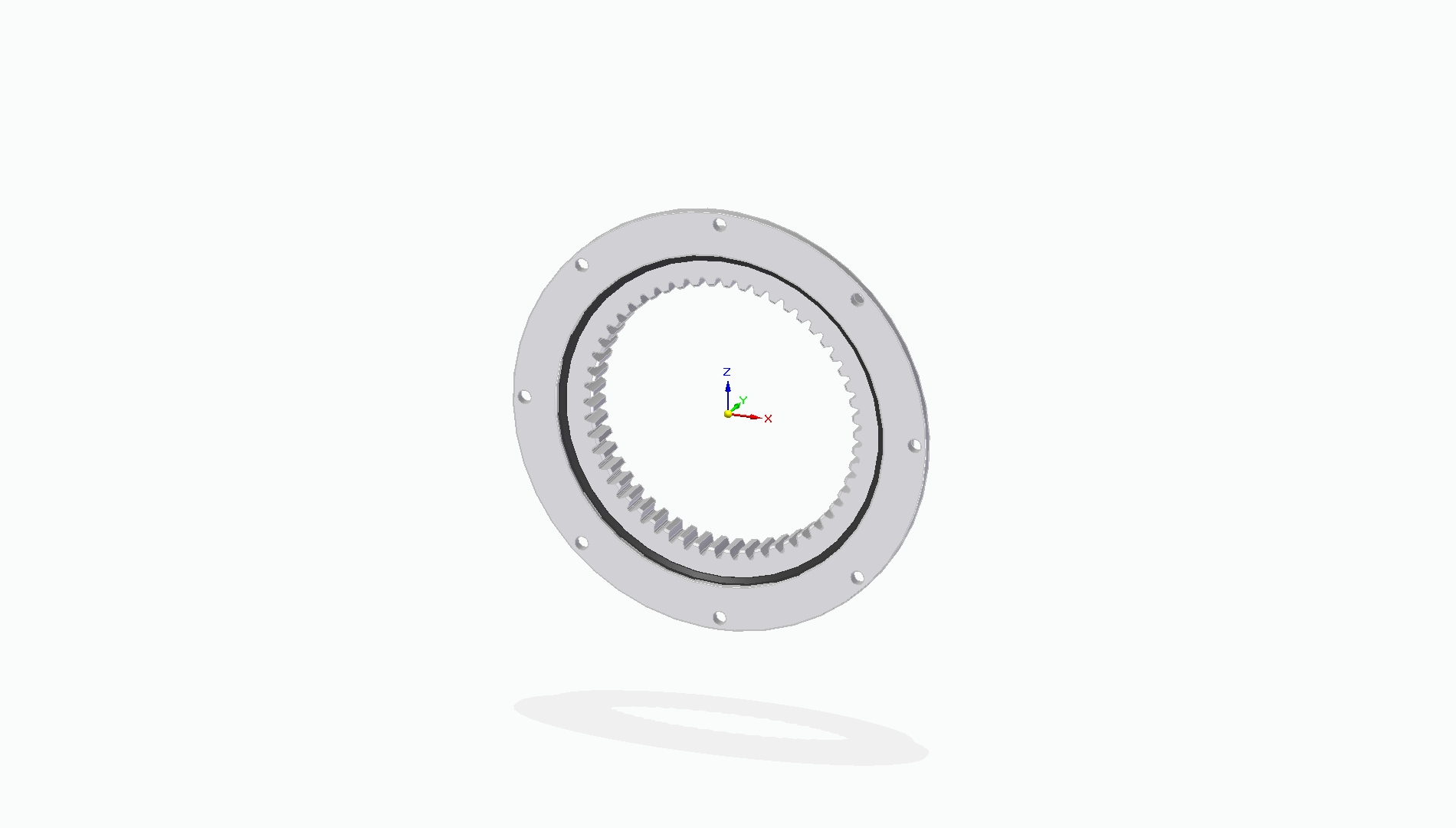

Model : CD-RK6-16N1Z
Specification Imperial Metric
SPINEA Part Number CD-RK6-16N1Z
Reference Kaydon Part Number RK6-16N1Z
Reference Torriani Part Number N/A
Type Flanged
Teeth Internal

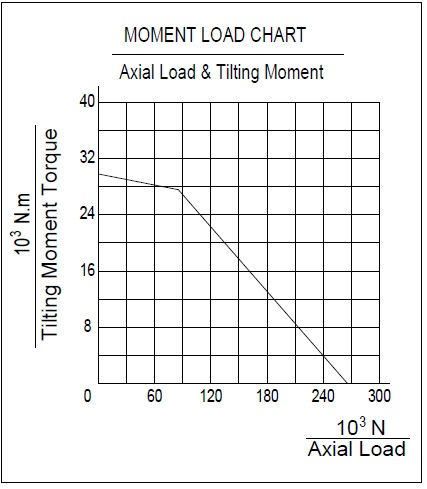

Max Moment Rating 22,700 ft-lbs 30,780 Nm
Approx. Weight 65 lbs 29.5 kg
Outer Diameter 20.39 in 518 mm
Inner Diameter 12.85 in 326.39 mm
Outer Bolt Circle Diameter 19.25 in 489.0 mm
Qty of Holes in Outer Ring 8
Outer Hole Size 0.688 in 17.5 mm
Inner Bolt Circle Diameter 14.88 in 378.0 mm
Qty of Holes in Inner Ring 12
Inner Hole Size 1/2 - 13 UNC-2B in 1/2 - 13 UNC-2B in




Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
