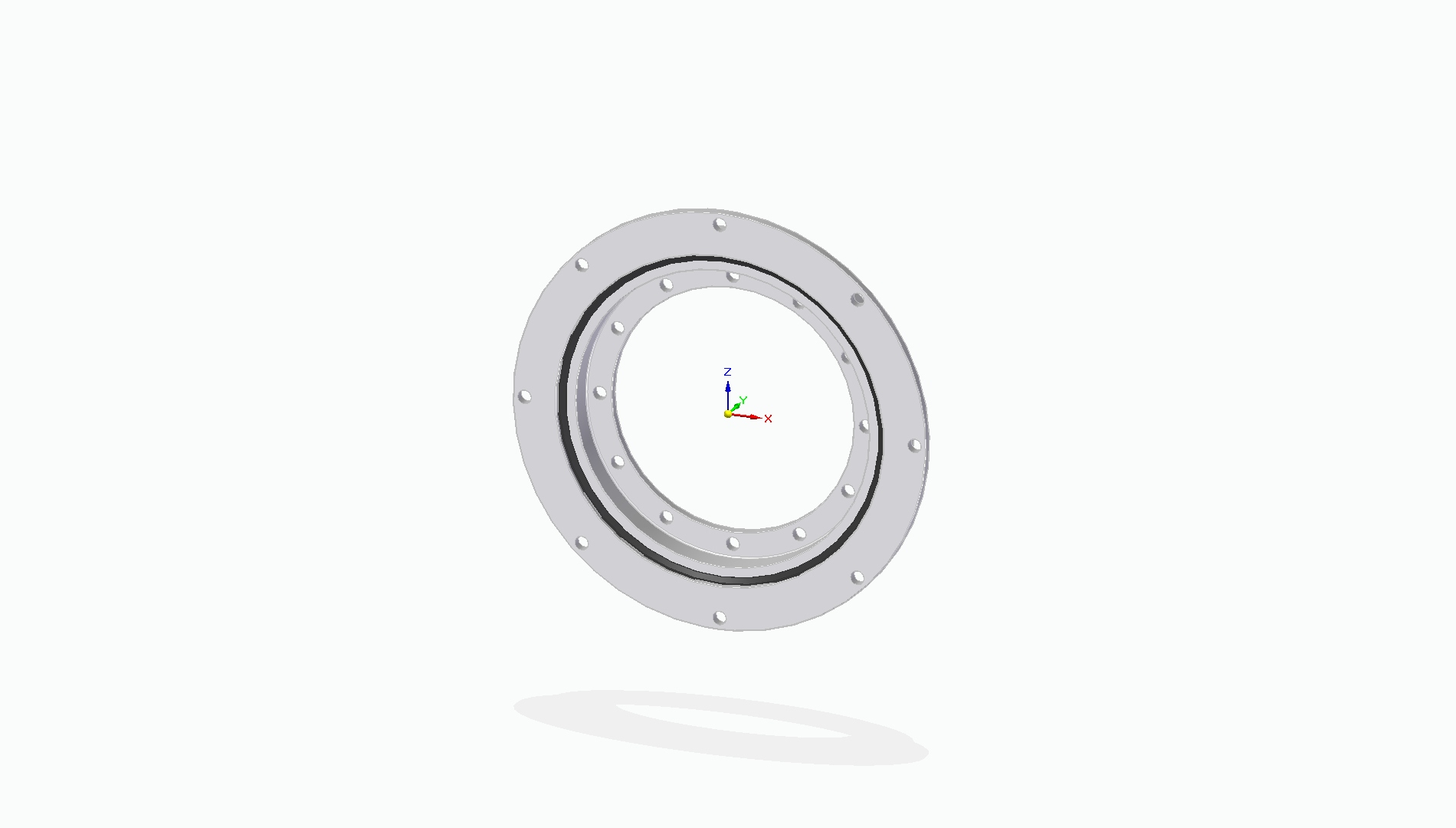

Model : CD-RK6-16P1Z
Specification Imperial Metric
SPINEA Part Number CD-RK6-16P1Z
Reference Kaydon Part Number RK6-16P1Z
Reference Torriani Part Number N/A
Type Flanged
Teeth None
Max Moment Rating 22,700 ft-lbs 30,780 Nm
Approx. Weight 58 lbs 26.3 kg
Outer Diameter 20.39 in 518 mm
Inner Diameter 11.97 in 304 mm
Outer Bolt Circle Diameter 19.25 in 489.0 mm
Qty of Holes in Outer Ring 8
Outer Hole Size 0.688 in 17.5 mm
Inner Bolt Circle Diameter 13.13 in 333.5 mm
Qty of Holes in Inner Ring 12
Inner Hole Size 0.688 in 17.5 mm


Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
