Model : CD-RK6-22P1Z
Specification Imperial Metric
SPINEA Part Number CD-RK6-22P1Z
Reference Kaydon Part Number RK6-22P1Z
Reference Torriani Part Number N/A
Type Flanged
Teeth None

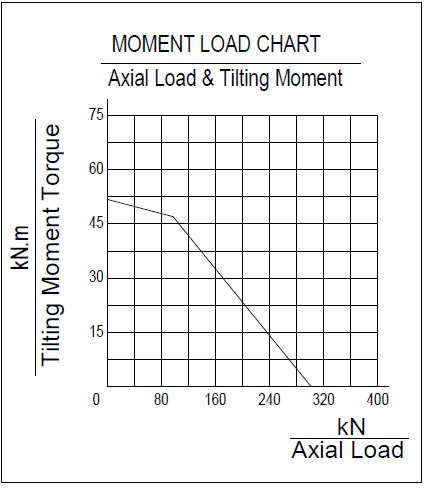

Max Moment Rating 37,700 ft-lbs 51,119 Nm
Approx. Weight 76 lbs 34.5 kg
Outer Diameter 25.51 in 648 mm
Inner Diameter 17.09 in 434 mm
Outer Bolt Circle Diameter 24.38 in 619.3 mm
Qty of Holes in Outer Ring 12
Outer Hole Size 0.688 in 17.5 mm
Inner Bolt Circle Diameter 18.13 in 460.5 mm
Qty of Holes in Inner Ring 15
Inner Hole Size 0.688 in 17.5 mm

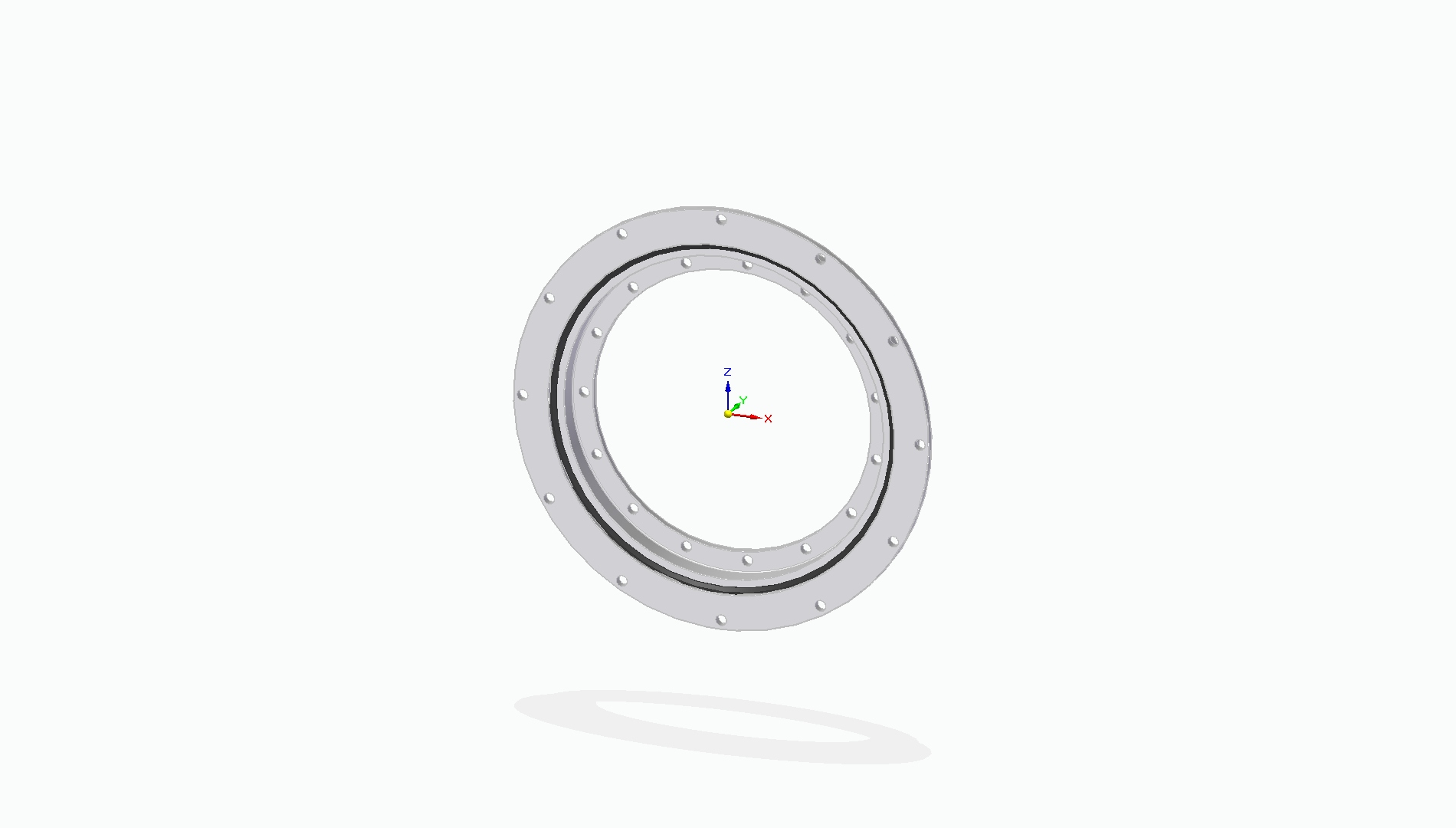

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
