Model : CD-RK6-29N1Z
Specification Imperial Metric
SPINEA Part Number CD-RK6-29N1Z
Reference Kaydon Part Number RK6-29N1Z
Reference Torriani Part Number N/A
Type Flanged
Teeth Internal

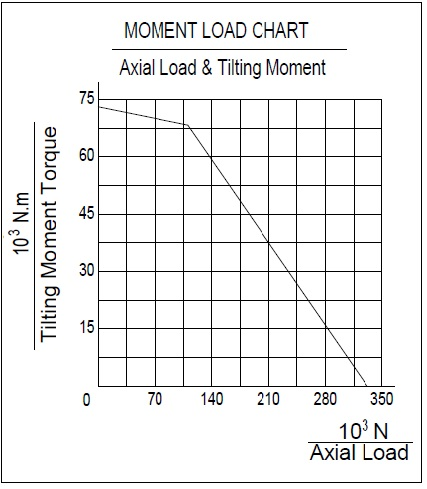

Max Moment Rating 54,200 ft-lbs 73,492 Nm
Approx. Weight 121 lbs 54.9 kg
Outer Diameter 33.39 in 848 mm
Inner Diameter 25.6 in 650.24 mm
Outer Bolt Circle Diameter 32.25 in 819.2 mm
Qty of Holes in Outer Ring 15
Outer Hole Size 0.688 in 17.5 mm
Inner Bolt Circle Diameter 27.63 in 701.8 mm
Qty of Holes in Inner Ring 18
Inner Hole Size 1/2 - 13 UNC-2B in 1/2 - 13 UNC-2B in

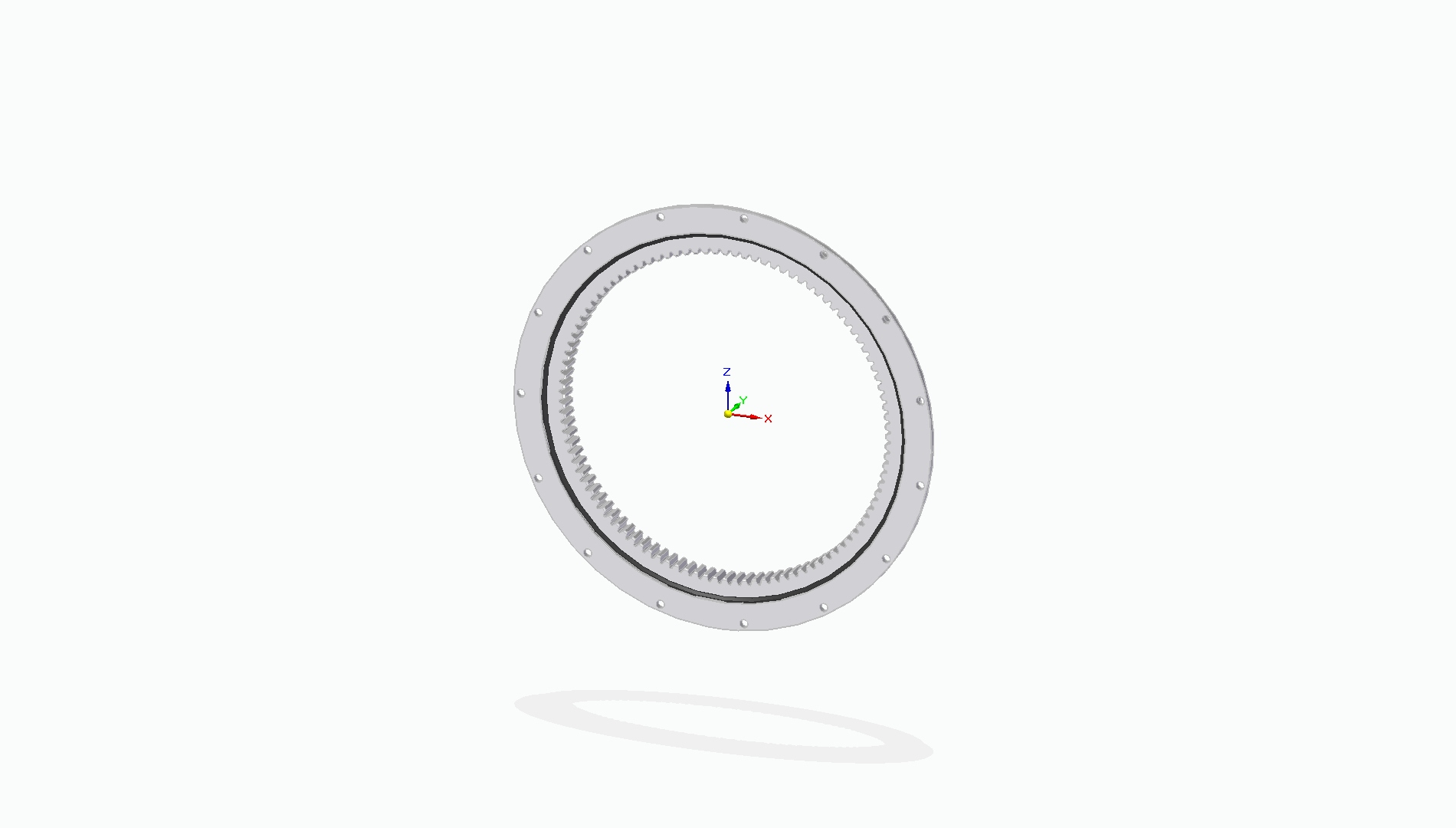

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
