SlewBearingInfo

Specification	Imperial	Metric
SPINEA Part Number	CD-RK6-33N1Z
Reference Kaydon Part Number	RK6-33N1Z
Reference Torriani Part Number	N/A
Type	Flanged
Teeth	Internal

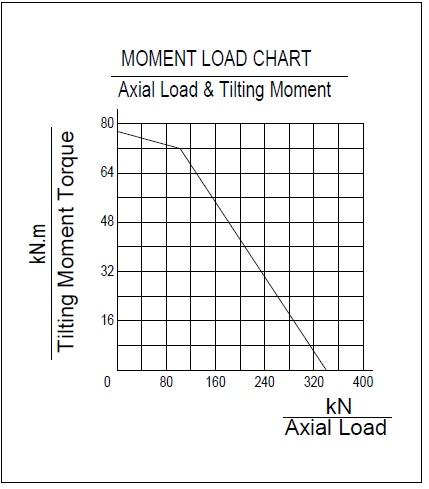

Max Moment Rating	56,500 ft-lbs	76,610 Nm
Approx. Weight	148 lbs	67.1 kg
Outer Diameter	37.32 in	948 mm
Inner Diameter	29.13 in	739.98 mm
Outer Bolt Circle Diameter	36.25 in	920.8 mm
Qty of Holes in Outer Ring	18
Outer Hole Size	0.688 in	17.5 mm
Inner Bolt Circle Diameter	31.5 in	800.1 mm
Qty of Holes in Inner Ring	18
Inner Hole Size	1/2 - 13 UNC-2B in	1/2 - 13 UNC-2B in

	Part No	PD (in)	Tooth Qty	Set Ratio
	39200003	4.667	14	6.36
	39200004	5.667	17	5.24

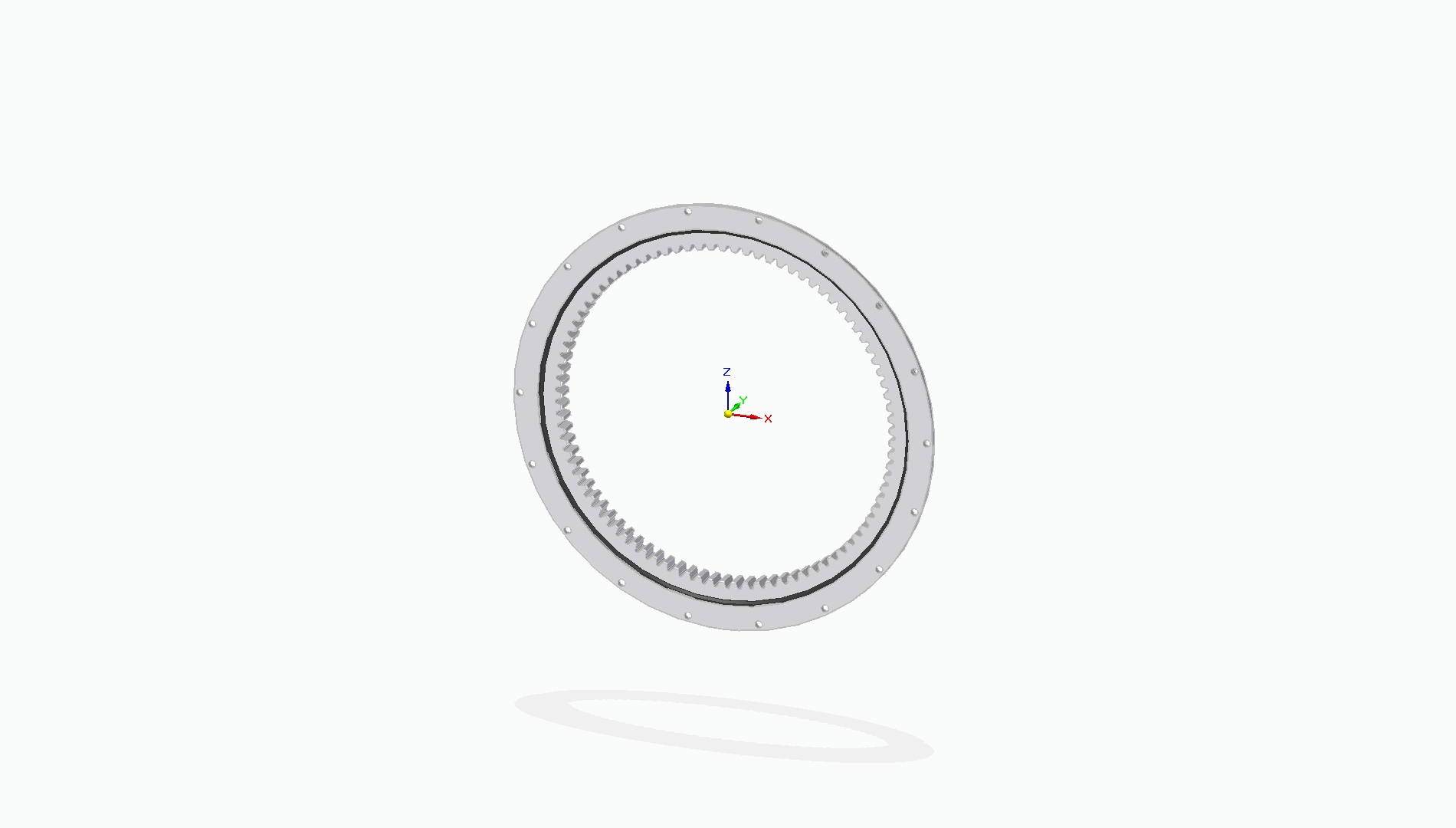

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
