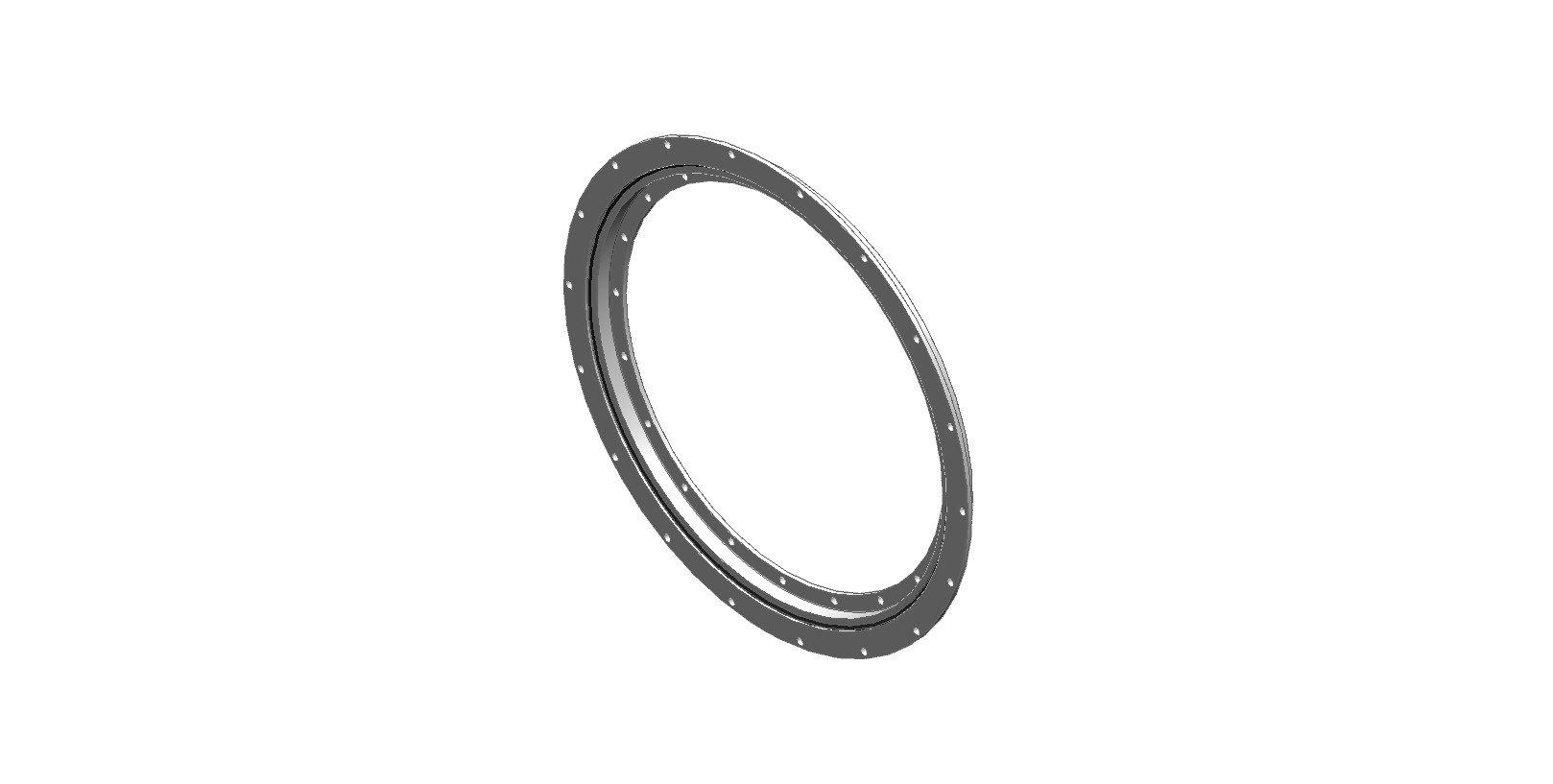

Model : CD-RK6-37P1Z
Specification Imperial Metric
SPINEA Part Number CD-RK6-37P1Z
Reference Kaydon Part Number RK6-37P1Z
Reference Torriani Part Number N/A
Type Flanged
Teeth None

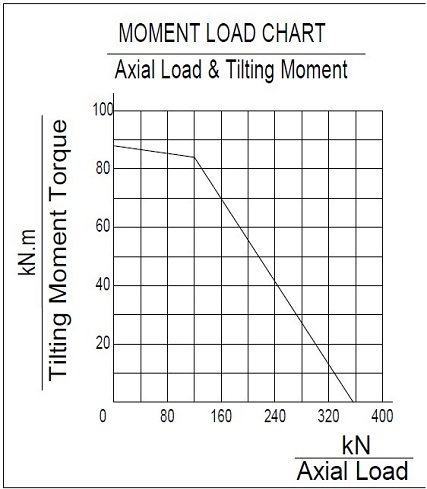

Max Moment Rating 65,200 ft-lbs 88,407 Nm
Approx. Weight 133 lbs 60.3 kg
Outer Diameter 41..26 in 1,048 mm
Inner Diameter 32.84 in 834 mm
Outer Bolt Circle Diameter 40.13 in 1019.3 mm
Qty of Holes in Outer Ring 18
Outer Hole Size 0.688 in 17.5 mm
Inner Bolt Circle Diameter 34 in 863.6 mm
Qty of Holes in Inner Ring 20
Inner Hole Size 0.688 in 17.5 mm


Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
