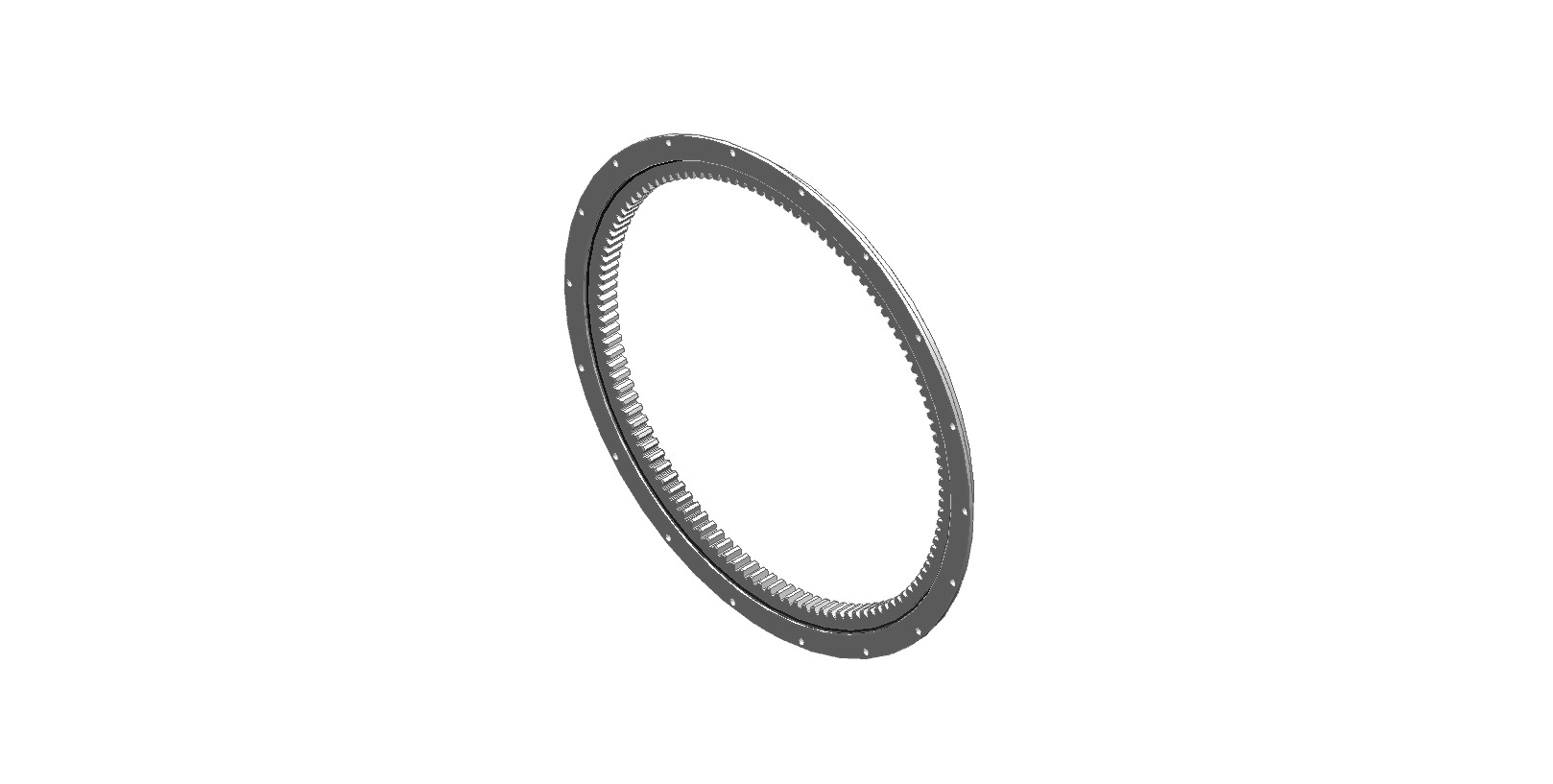

Model : CD-RK6-43N1Z
Specification Imperial Metric
SPINEA Part Number CD-RK6-43N1Z
Reference Kaydon Part Number RK6-43N1Z
Reference Torriani Part Number N/A
Type Flanged
Teeth Internal

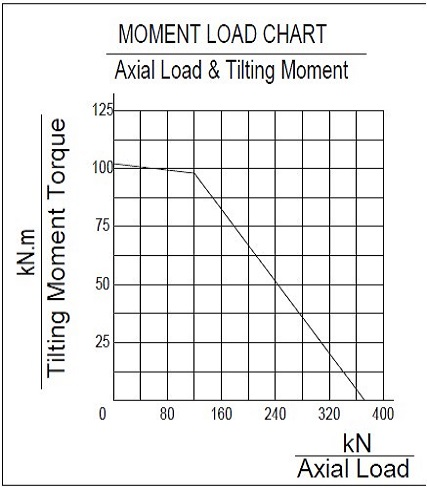

Max Moment Rating 75,500 ft-lbs 102,373 Nm
Approx. Weight 188 lbs 85.3 kg
Outer Diameter 47.17 in 1,198 mm
Inner Diameter 39.13 in 993.99 mm
Outer Bolt Circle Diameter 46 in 1168.4 mm
Qty of Holes in Outer Ring 18
Outer Hole Size 1/2-13 UNC-2B in 1/2-13 UNC-2B in
Inner Bolt Circle Diameter 41.5 in 1054.1 mm
Qty of Holes in Inner Ring 24
Inner Hole Size 0.688 in 17.5 mm
