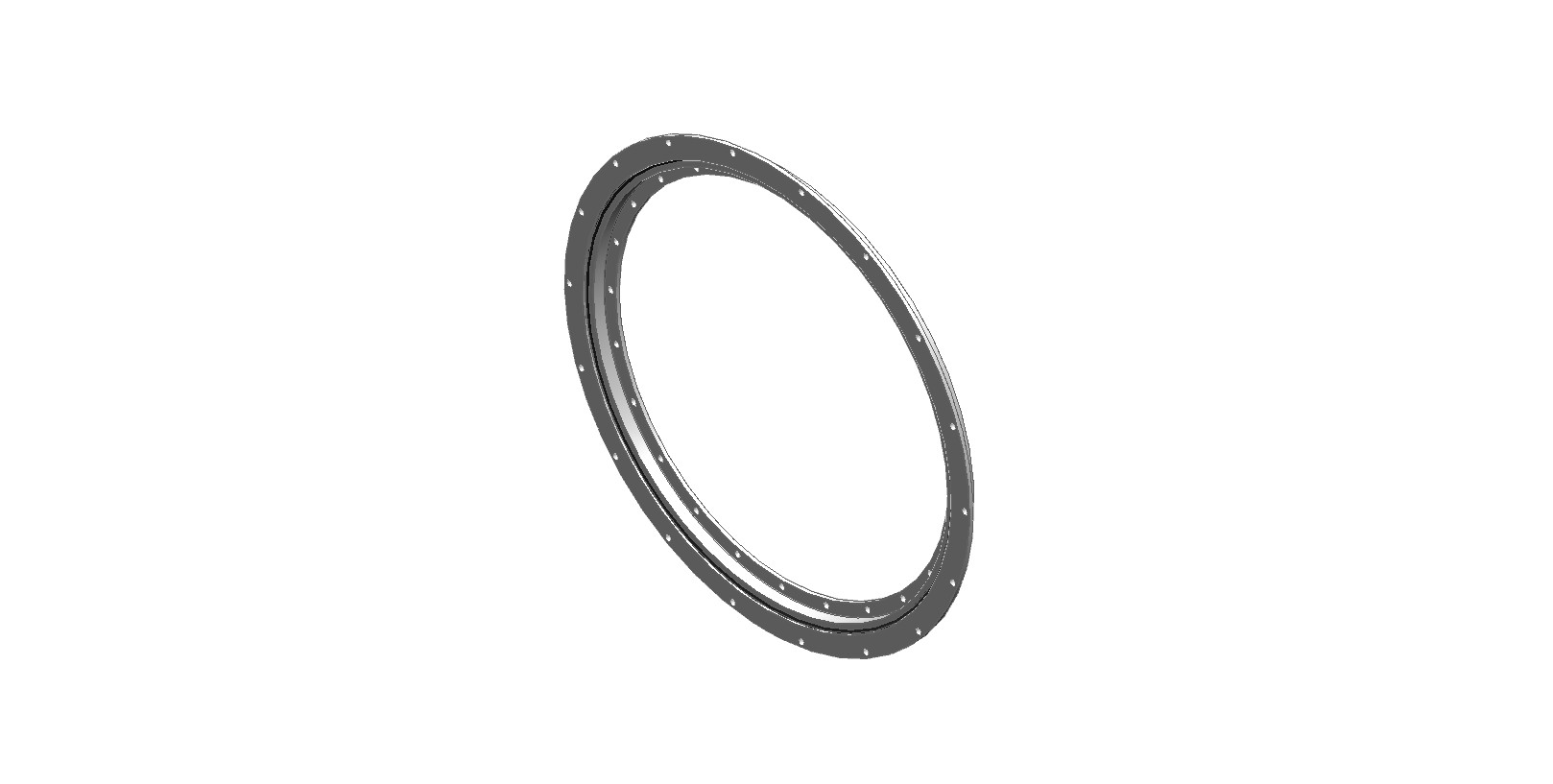

Model : CD-RK6-43P1Z
Specification Imperial Metric
SPINEA Part Number CD-RK6-43P1Z
Reference Kaydon Part Number RK6-43P1Z
Reference Torriani Part Number N/A
Type Flanged
Teeth None

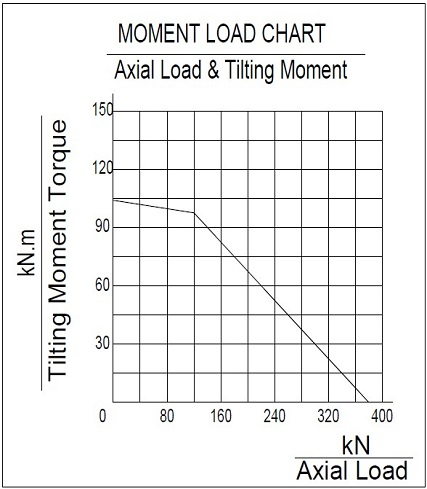

Max Moment Rating 75,500 ft-lbs 102,373 Nm
Approx. Weight 152 lbs 68.9 kg
Outer Diameter 47.17 in 1,198 mm
Inner Diameter 38.75 in 984 mm
Outer Bolt Circle Diameter 46 in 1168.4 mm
Qty of Holes in Outer Ring 18
Outer Hole Size 0.688 in 17.5 mm
Inner Bolt Circle Diameter 39.88 in 1012.952 mm
Qty of Holes in Inner Ring 24
Inner Hole Size 0.688 in 17.5 mm


Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
