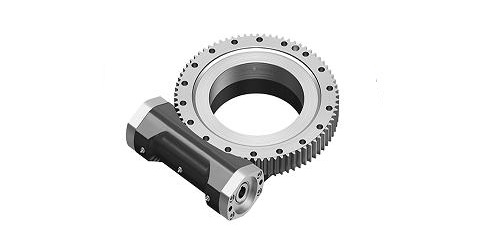

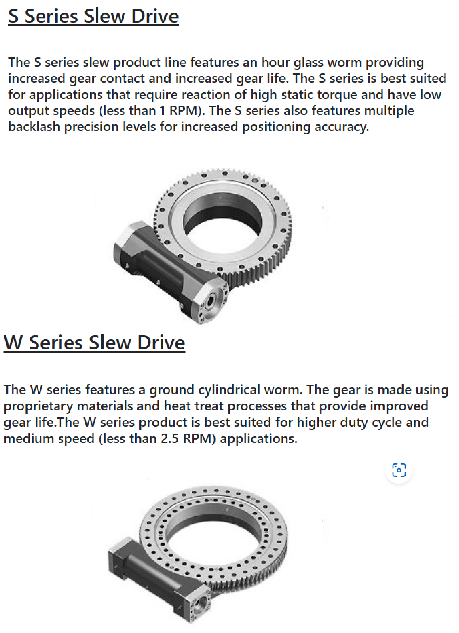

S Series Slew Drive


The S series slew product line features an hour glass worm providing increased gear contact and increased gear life. The S series is best suited for applications that require reaction of high static torque and have low output speeds (less than 1 RPM). The S series also features multiple backlash precision levels for increased positioning accuracy.

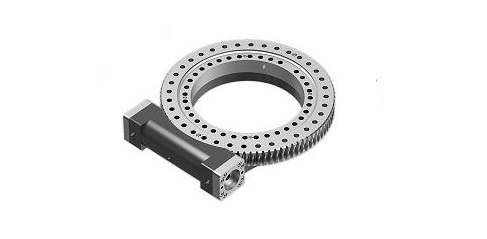

W Series Slew Drive


The W series features a ground cylindrical worm. The gear is made using proprietary materials and heat treat processes that provide improved gear life.The W series product is best suited for higher duty cycle and medium speed (less than 2.5 RPM) applications.
Certain W Series configurations are stocked at the Cone Drive plant in Traverse City, MI. Please contact orders@conedrive.com for more information about stocked slew drives and availability.

**Both S series and W Series feature a variety of sealing,housing and accessory options. For further information and applications guidance for these products,please contact Cone Drive Application Engineering at AE@conedrive.com.
Configure your Slew Product
Type in the product code (if known) below, or select features using the
guided selection process and the code will automatically populate

Guided Selection Process
